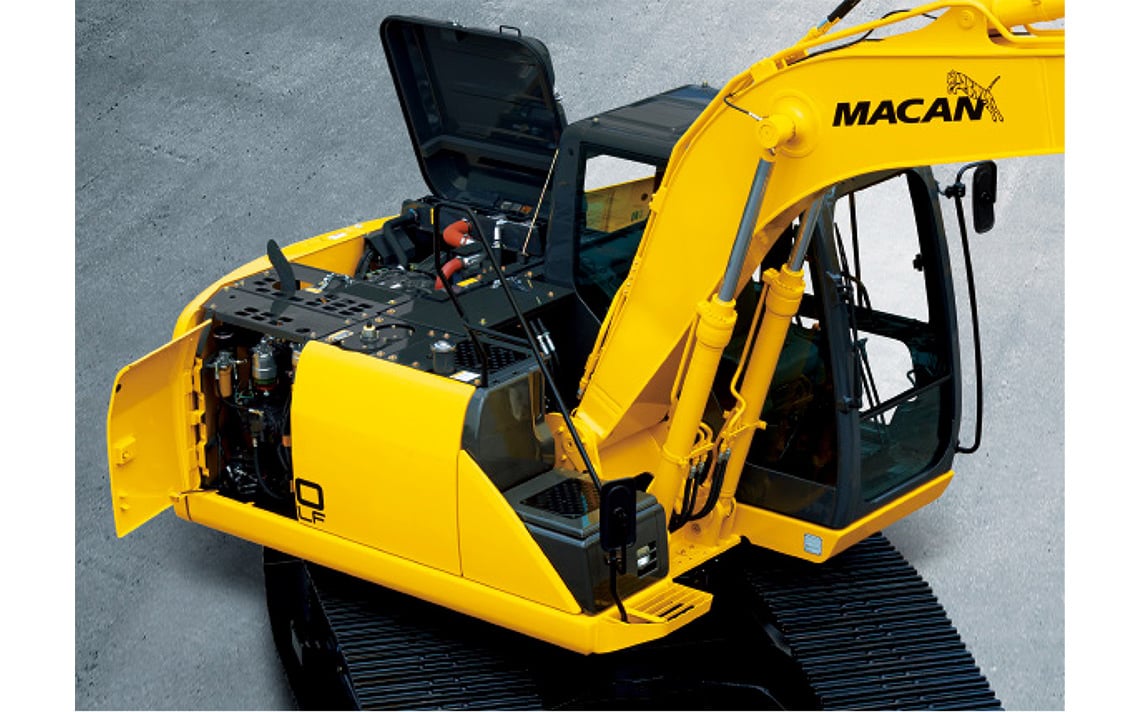

SH130LF-5 MACAN Sumitomo excavator specs & Dimensions (2017 - 2026)

Sumitomo SH130LF-5 MACAN is a crawler excavator manufactured since 2017. It has a weight of 15.4 tons and a track width of 800 mm.…

Sumitomo SH130LF-5 MACAN is a crawler excavator manufactured since 2017. It has a weight of 15.4 tons and a track width of 800 mm. The transport dimensions are 7.57 meters in length, 2.84 meters in width, and 2.78 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 5.28 meters, and a maximum horizontal reach of 8.32 meters. The bucket width is 0.972 meters with a capacity of 0.5 cubic meters. It is equipped with air conditioning.

Crawler Excavators Sumitomo SH130LF-5 MACAN

Technical specs - SH130LF-5 MACAN Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.4 t
Transport length
7.57 m
Transport width
2.84 m
Transport height
2.78 m
Bucket capacity
0.5 m³
Track width
800 mm
Max. Reach horizontal
8.32 m
Dredging depth
5.28 m
Tear-out force
90 kN
Bucket width
0.972 m
Model series
SH
Engine manuf.
Isuzu
Engine type
AJ-4JJ1X
Engine power
70.9 kW
Displacement
2.999 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH130LF-5 MACAN FAQ

When was the Sumitomo SH130LF-5 MACAN manufactured?

The Sumitomo SH130LF-5 MACAN was first produced in 2017.

How much does the Sumitomo SH130LF-5 MACAN weigh?

The Sumitomo SH130LF-5 MACAN weighs 15.4 tons.

What are the transport dimensions of the Sumitomo SH130LF-5 MACAN crawler excavator?

The Sumitomo SH130LF-5 MACAN has a transport length of 7.57 meters, a transport width of 2.84 meters, and a transport height of 2.78 meters.

What is the track width of the Sumitomo SH130LF-5 MACAN's undercarriage?

The Sumitomo SH130LF-5 MACAN has a track width of 800 mm.

What are the excavation performance specifications of the Sumitomo SH130LF-5 MACAN?

The Sumitomo SH130LF-5 MACAN has a dredging depth of 5.28 meters and a maximum horizontal reach of 8.32 meters.

What power rating information is available for the Sumitomo SH130LF-5 MACAN?

There is no power rating information available for the Sumitomo SH130LF-5 MACAN in the provided data.

What are the bucket specifications of the Sumitomo SH130LF-5 MACAN excavator?

The Sumitomo SH130LF-5 MACAN excavator has a bucket capacity of 0.5 cubic meters and a bucket width of 0.972 meters.
