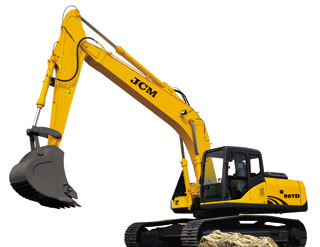

JCM927D Strong excavator specs & Dimensions (2017 - 2026)

Strong JCM927D is a Crawler Excavator manufactured since 2017, with a weight of 27.3 tons. It features a track width of 600 mm, a …

Strong JCM927D is a Crawler Excavator manufactured since 2017, with a weight of 27.3 tons. It features a track width of 600 mm, a transport length of 9.914 meters, a transport width of 3.2 meters, and a transport height of 3.254 meters. The machine has a tear-out force of 161.2 kN, a dredging depth of 6.485 meters, and a maximum horizontal reach of 9.98 meters. The bucket width is 1.45 meters, with a bucket capacity of 1.3 cubic meters. It is equipped with air conditioning.

Crawler Excavators Strong JCM927D

Technical specs - JCM927D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.3 t
Transport length
9.914 m
Transport width
3.2 m
Transport height
3.254 m
Bucket capacity
1.3 m³
Track width
600 mm
Max. Reach horizontal
9.98 m
Dredging depth
6.485 m
Tear-out force
161.2 kN
Bucket width
1.45 m
Model series
JCM
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
133 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong JCM927D FAQ

When was the Strong JCM927D manufactured?

The Strong JCM927D was first produced in 2017.

How much does the Strong JCM927D weigh?

The Strong JCM927D weighs 27.3 tons.

What are the transport dimensions of the Strong JCM927D crawler excavator?

The Strong JCM927D crawler excavator has a transport length of 9.91 meters, a transport width of 3.2 meters, and a transport height of 3.25 meters.

What is the track width of the Strong JCM927D's undercarriage?

The Strong JCM927D has a track width of 600 mm.

What are the excavation performance specifications of the Strong JCM927D?

The Strong JCM927D has a dredging depth of 6.485 meters and a maximum horizontal reach of 9.98 meters.

What is the tear-out force of the Strong JCM927D?

The Strong JCM927D has a tear-out force of 161.2 kN. No power rating data is available for this model.

What are the bucket specifications of the Strong JCM927D crawler excavator?

The Strong JCM927D crawler excavator has a bucket capacity of 1.3 cubic meters and a bucket width of 1.45 meters.
