JCM924D Strong excavator specs & Dimensions (2017 - 2026)

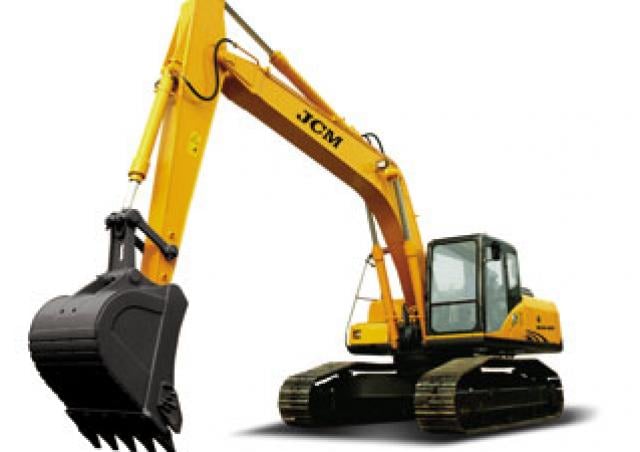

Strong JCM924D is a Crawler Excavator manufactured since 2017, with a weight of 24.1 tons. It features a track width of 600 mm, a …

Strong JCM924D is a Crawler Excavator manufactured since 2017, with a weight of 24.1 tons. It features a track width of 600 mm, a transport length of 9.907 meters, a transport width of 3 meters, and a transport height of 3.255 meters. The machine has a tear-out force of 129.4 kN, a dredging depth of 6.853 meters, and a maximum horizontal reach of 10.03 meters. The bucket width is 1.325 meters, with a bucket capacity of 1.2 cubic meters. It is equipped with air conditioning.

Crawler Excavators Strong JCM924D

Technical specs - JCM924D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.1 t
Transport length
9.907 m
Transport width
3 m
Transport height
3.255 m
Bucket capacity
1.2 m³
Track width
600 mm
Max. Reach horizontal
10.03 m
Dredging depth
6.853 m
Tear-out force
129.4 kN
Bucket width
1.325 m
Model series
JCM
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
133 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong JCM924D FAQ

When was the Strong JCM924D manufactured?

The Strong JCM924D was first produced in 2017.

How much does the Strong JCM924D weigh?

The Strong JCM924D weighs 24.1 tons.

What are the transport dimensions of the Strong JCM924D crawler excavator?

The Strong JCM924D has a transport length of 9.91 meters, a transport width of 3 meters, and a transport height of 3.26 meters.

What is the track width of the Strong JCM924D crawler excavator?

The Strong JCM924D crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Strong JCM924D?

The Strong JCM924D has a dredging depth of 6.853 meters and a maximum horizontal reach of 10.03 meters.

What is the tear-out force of the Strong JCM924D crawler excavator?

The Strong JCM924D crawler excavator has a tear-out force of 129.4 kN.

What are the bucket specifications of the Strong JCM924D crawler excavator?

The Strong JCM924D has a bucket capacity of 1.2 cubic meters and a bucket width of 1.325 meters.
