JCM908D Strong excavator specs & Dimensions (2017 - 2026)

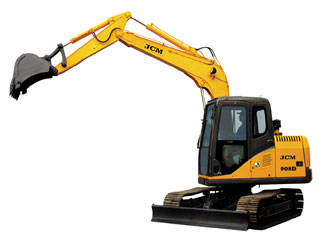

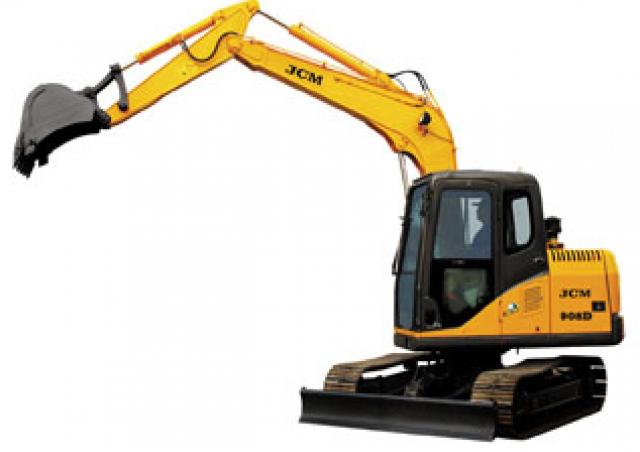

Strong JCM908D is a Crawler Excavator manufactured since 2017, with a weight of 7.8 tons. It features a track width of 450 mm, a t…

Strong JCM908D is a Crawler Excavator manufactured since 2017, with a weight of 7.8 tons. It features a track width of 450 mm, a transport length of 6.224 meters, a transport width of 2.3 meters, and a transport height of 2.633 meters. The machine has a tear-out force of 53.6 kN, a dredging depth of 4.006 meters, and a maximum horizontal reach of 6.293 meters. The bucket width is 0.82 meters with a capacity of 0.32 cubic meters. Special equipment includes air conditioning and a blade.

Crawler Excavators Strong JCM908D

Technical specs - JCM908D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.8 t
Transport length
6.224 m
Transport width
2.3 m
Transport height
2.633 m
Bucket capacity
0.32 m³
Track width
450 mm
Max. Reach horizontal
6.293 m
Dredging depth
4.006 m
Tear-out force
53.6 kN
Bucket width
0.82 m
Model series
JCM
Engine manuf.
Cummins
Engine type
B3.3
Engine power
60 kW
Displacement
3.3 l
No. of cylinders
4
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong JCM908D FAQ

When was the Strong JCM908D manufactured?

The Strong JCM908D was first produced in 2017.

How much does the Strong JCM908D weigh?

The Strong JCM908D weighs 7.8 tons.

What are the transport dimensions of the Strong JCM908D crawler excavator?

The Strong JCM908D crawler excavator has a transport length of 6.22 meters, a transport width of 2.3 meters, and a transport height of 2.63 meters.

What is the track width of the Strong JCM908D's undercarriage?

The Strong JCM908D has a track width of 450 mm.

What are the excavation performance specifications of the Strong JCM908D?

The Strong JCM908D has a dredging depth of 4.006 meters and a maximum horizontal reach of 6.293 meters.

What is the tear-out force of the Strong JCM908D crawler excavator?

The Strong JCM908D crawler excavator has a tear-out force of 53.6 kN.

What are the specifications of the bucket on the Strong JCM908D crawler excavator?

The Strong JCM908D crawler excavator has a bucket with a capacity of 0.32 cubic meters and a width of 0.82 meters.

How much is a Strong JCM908D Crawler excavator (2017u20132025) worth?

The residual value of the Strong JCM908D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
