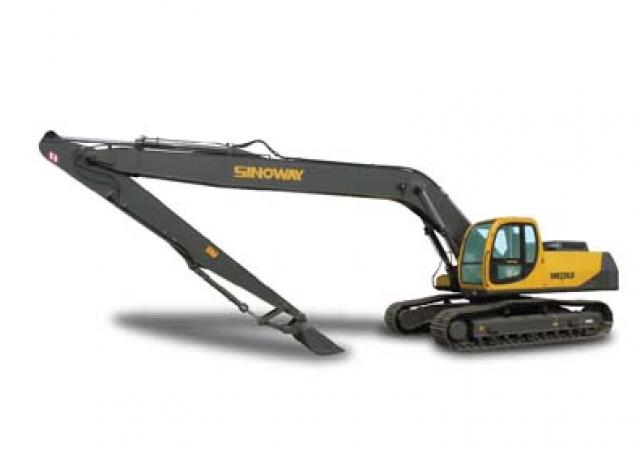

SWE230LB Sinoway excavator specs & Dimensions (2018 - 2026)

Sinoway SWE230LB is a Crawler Excavator manufactured since 2018. It has a weight of 24.1 tons and a track width of 600 mm. The tra…

Sinoway SWE230LB is a Crawler Excavator manufactured since 2018. It has a weight of 24.1 tons and a track width of 600 mm. The transport dimensions are 13.15 meters in length, 3 meters in width, and 3.32 meters in height. The excavator features a tear-out force of 64 kN, a dredging depth of 11.6 meters, and a maximum horizontal reach of 15.1 meters. It is equipped with a bucket capacity of 0.6 cubic meters and includes special equipment such as air conditioning and cabin adjustment.

Crawler Excavators Sinoway SWE230LB

Technical specs - SWE230LB Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.1 t
Transport length
13.15 m
Transport width
3 m
Transport height
3.32 m
Bucket capacity
0.6 m³
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
15.1 m
Dredging depth
11.6 m
Tear-out force
64 kN
Model series
SWE
Engine manuf.
Cummins
Engine type
B5.9
Engine power
133 kW
Displacement
5.9 l
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWE230LB FAQ

When was the Sinoway SWE230LB manufactured?

The Sinoway SWE230LB was first produced in 2018.

How much does the Sinoway SWE230LB weigh?

The Sinoway SWE230LB weighs 24.1 tons.

What are the transport dimensions of the Sinoway SWE230LB crawler excavator?

The Sinoway SWE230LB has a transport length of 13.15 meters, a transport width of 3 meters, and a transport height of 3.32 meters.

What are the undercarriage specifications of the Sinoway SWE230LB crawler excavator?

The Sinoway SWE230LB has a long undercarriage that is hydraulically extendable and features a track width of 600 mm.

What are the excavation performance specifications of the Sinoway SWE230LB?

The Sinoway SWE230LB has a dredging depth of 11.6 meters, a maximum horizontal reach of 15.1 meters, and features a monobloc boom.

What is the power rating of the Sinoway SWE230LB?

The power rating of the Sinoway SWE230LB is not provided in the available data.

What is the bucket capacity of the Sinoway SWE230LB excavator?

The Sinoway SWE230LB excavator has a bucket capacity of 0.6 cubic meters.

How much is a Sinoway SWE230LB Crawler excavator (2018u20132025) worth?

The residual value of the Sinoway SWE230LB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
