SE950LC Shantui excavator specs & Dimensions (2023 - 2025)

Weight: 96t – Transport length: 13.72m – Transport width: 4.485m – Transport height: 5.025m – Bucket capacity: 5.6m³ – Undercarria…

Weight: 96t – Transport length: 13.72m – Transport width: 4.485m – Transport height: 5.025m – Bucket capacity: 5.6m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE950LC excavator manufactured between 2023 - 2025. Get more in-depth insight with Shantui SE950LC digger specifications. See information, like: Weight: 96t – Transport length: 13.72m – Transport width: 4.485m – Transport height: 5.025m – Bucket capacity: 5.6m³ – Undercarriage: LC and more.

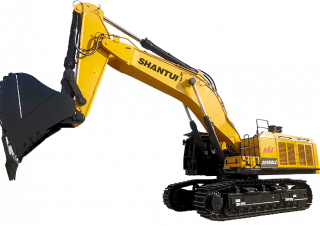

Crawler Excavators Shantui SE950LC

Technical specs - SE950LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
96 t
Transport length
13.72 m
Transport width
4.485 m
Transport height
5.025 m
Bucket capacity
5.6 m³
Undercarriage
LC
Max. Reach horizontal
12.715 m
Dredging depth
7.14 m
Tear-out force
485 kN

More technical details, like: bucket capacity min., bucket capacity max., track width, boom, bucket width, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., track width, boom, bucket width, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui SE950LC FAQ

When was the Shantui SE950LC manufactured?

The Shantui SE950LC was first produced in 2023.

How much does the Shantui SE950LC weigh?

The Shantui SE950LC weighs 96 tons.

What are the transport dimensions of the Shantui SE950LC crawler excavator?

The Shantui SE950LC has a transport length of 13.72 meters, a transport width of 4.49 meters, and a transport height of 5.03 meters.

What type of undercarriage does the Shantui SE950LC have?

The Shantui SE950LC has a long undercarriage.

What are the excavation specifications of the Shantui SE950LC?

The Shantui SE950LC has a dredging depth of 7.14 meters and a maximum horizontal reach of 12.715 meters.

What is the tear-out force of the Shantui SE950LC?

The Shantui SE950LC has a tear-out force of 485 kN.

What is the bucket capacity of the Shantui SE950LC crawler excavator?

The Shantui SE950LC crawler excavator has a bucket capacity of 5.6 cubic meters.

How much is a Shantui SE950LC Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE950LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
