SE245LC Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 24.8t – Transport length: 9.985m – Transport width: 3.18m – Transport height: 3.235m – Bucket capacity: 1.2m³ – Undercarri…

Weight: 24.8t – Transport length: 9.985m – Transport width: 3.18m – Transport height: 3.235m – Bucket capacity: 1.2m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE245LC excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE245LC digger specifications. See information, like: Weight: 24.8t – Transport length: 9.985m – Transport width: 3.18m – Transport height: 3.235m – Bucket capacity: 1.2m³ – Undercarriage: LC and more.

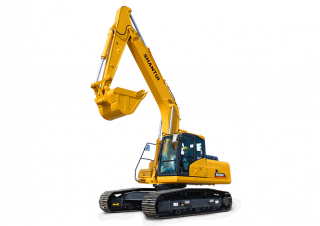

Crawler Excavators Shantui SE245LC

Technical specs - SE245LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.8 t
Transport length
9.985 m
Transport width
3.18 m
Transport height
3.235 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
10.015 m
Dredging depth
6.864 m
Tear-out force
172 kN
Bucket width
1.424 m
Engine manuf.
Cummins
Engine type
QSB7
Engine power
150 kW
Displacement
6.7 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., boom, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE245LC FAQ

When was the Shantui SE245LC manufactured?

The Shantui SE245LC was first produced in 2023.

How much does the Shantui SE245LC weigh?

The Shantui SE245LC weighs 24.8 tons.

What are the transport dimensions of the Shantui SE245LC crawler excavator?

The Shantui SE245LC has a transport length of 9.89 meters, a transport width of 3.18 meters, and a transport height of 3.24 meters.

What type of undercarriage does the Shantui SE245LC have?

The Shantui SE245LC has a long undercarriage.

What are the excavation performance specifications of the Shantui SE245LC?

The Shantui SE245LC has a dredging depth of 6.864 meters and a maximum horizontal reach of 10.18 meters.

What is the tear-out force of the Shantui SE245LC?

The Shantui SE245LC has a tear-out force of 172 kN.

What is the bucket capacity of the Shantui SE245LC crawler excavator?

The bucket capacity of the Shantui SE245LC crawler excavator is 1.2 cubic meters.

How much is a Shantui SE245LC Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE245LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
