SE210W Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 21.1t – Transport length: 10.88m – Transport width: 3.2m – Transport height: 3.85m – Bucket capacity: 1.5m³ – Track width:…

Weight: 21.1t – Transport length: 10.88m – Transport width: 3.2m – Transport height: 3.85m – Bucket capacity: 1.5m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Shantui SE210W excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE210W digger specifications. See information, like: Weight: 21.1t – Transport length: 10.88m – Transport width: 3.2m – Transport height: 3.85m – Bucket capacity: 1.5m³ – Track width: 600mm and more.

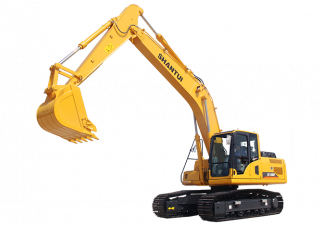

Crawler Excavators Shantui SE210W

Technical specs - SE210W Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.1 t
Transport length
10.88 m
Transport width
3.2 m
Transport height
3.85 m
Bucket capacity
1.5 m³
Track width
600 mm
Max. Reach horizontal
10.375 m
Dredging depth
6.76 m
Tear-out force
210 kN
Engine manuf.
Weichai
Engine type
WP7
Engine power
199 kW
Displacement
7.47 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE210W FAQ

When was the Shantui SE210W manufactured?

The Shantui SE210W was first produced in 2023.

How much does the Shantui SE210W weigh?

The Shantui SE210W weighs 21.1 tons.

What are the transport dimensions of the Shantui SE210W crawler excavator?

The Shantui SE210W has a transport length of 9.54 meters, a transport width of 2.8 meters, and a transport height of 3.04 meters.

What are the excavation specifications of the Shantui SE210W?

The Shantui SE210W has a dredging depth of 6.541 meters and a maximum horizontal reach of 10.029 meters.

What is the power rating of the Shantui SE210W?

The power rating of the Shantui SE210W is not provided in the available data.

What is the bucket capacity of the Shantui SE210W crawler excavator?

The Shantui SE210W crawler excavator has a bucket capacity of 0.9 cubic meters.
