SE135W Shantui excavator specs & Dimensions (2025 - 2026)

Weight: 13.5t – Transport length: 7.86m – Transport width: 2.5m – Transport height: 2.855m – Bucket capacity: 0.6m³ – Bucket capac…

Weight: 13.5t – Transport length: 7.86m – Transport width: 2.5m – Transport height: 2.855m – Bucket capacity: 0.6m³ – Bucket capacity min.: 0.45m³

Check out detailed specifications, information and technical data for Shantui SE135W excavator manufactured between 2025 - 2026. Get more in-depth insight with Shantui SE135W digger specifications. See information, like: Weight: 13.5t – Transport length: 7.86m – Transport width: 2.5m – Transport height: 2.855m – Bucket capacity: 0.6m³ – Bucket capacity min.: 0.45m³ and more.

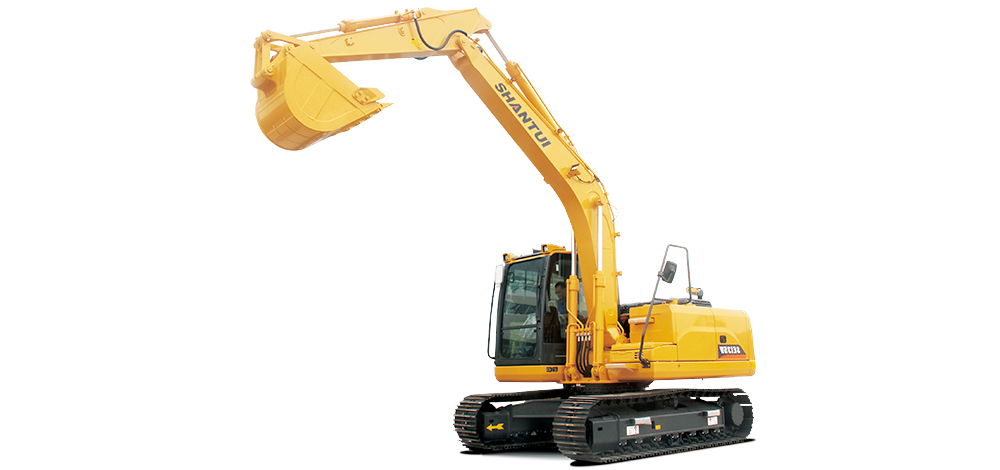

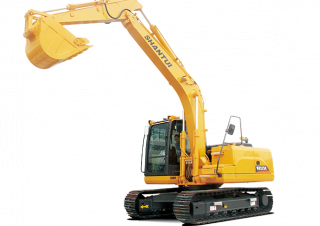

Crawler Excavators Shantui SE135W

Technical specs - SE135W Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Transport length
7.86 m
Transport width
2.5 m
Transport height
2.855 m
Bucket capacity
0.6 m³
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.63 m³
Track width
500 mm
Max. Reach horizontal
8.175 m
Dredging depth
5.49 m
Tear-out force
97 kN
Engine manuf.
Weichai
Engine type
WP4.1
Engine power
92 kW
Displacement
4.09 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
