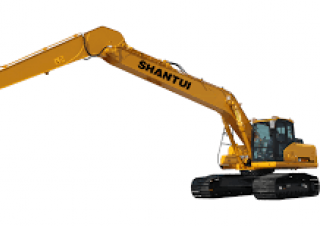

S245LC Shantui excavator specs & Dimensions (2020 - 2023)

Shantui S245LC is a crawler excavator manufactured since 2020. It has a weight of 24.8 tons and a track width of 600 mm. The trans…

Shantui S245LC is a crawler excavator manufactured since 2020. It has a weight of 24.8 tons and a track width of 600 mm. The transport dimensions are 10 meters in length, 3.18 meters in width, and 3.07 meters in height. The dredging depth is 7.2 meters, with a maximum horizontal reach of 10.2 meters. The bucket capacity is 1.2 cubic meters.

Crawler Excavators Shantui S245LC

Technical specs - S245LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.8 t
Transport length
10 m
Transport width
3.18 m
Transport height
3.07 m
Bucket capacity
1.2 m³
Track width
600 mm
Max. Reach horizontal
10.2 m
Dredging depth
7.2 m
Model series
MEDIUM
Engine manuf.
Cummins
Engine type
QSB7
Engine power
150 kW
Displacement
6.7 l
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui S245LC FAQ

When was the Shantui S245LC manufactured?

The Shantui S245LC was manufactured from 2020 to 2023.

How much does the Shantui S245LC weigh?

The Shantui S245LC weighs 24.8 tons.

What are the transport dimensions of the Shantui S245LC crawler excavator?

The Shantui S245LC crawler excavator has a transport length of 10 meters, a transport width of 3.18 meters, and a transport height of 3.07 meters.

What is the track width of the Shantui S245LC crawler excavator?

The Shantui S245LC crawler excavator has a track width of 600 mm.

What is the excavation performance of the Shantui S245LC?

The Shantui S245LC has a dredging depth of 7.2 meters and a maximum horizontal reach of 10.2 meters.

What is the bucket capacity of the Shantui S245LC crawler excavator?

The Shantui S245LC crawler excavator has a bucket capacity of 1.2 cubic meters.

How much is a Shantui S245LC Crawler excavator (2020u20132023) worth?

The residual value of the Shantui S245LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
