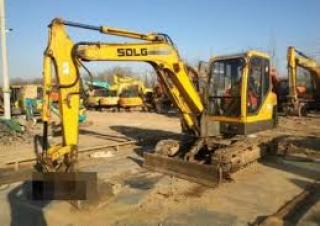

LG665 SDLG excavator specs & Dimensions (2013 - 2026)

SDLG LG665 is a Crawler Excavator manufactured since 2013. It has a weight of 6.1 tons and a track width of 400 mm. The transport …

SDLG LG665 is a Crawler Excavator manufactured since 2013. It has a weight of 6.1 tons and a track width of 400 mm. The transport dimensions are 5 meters in length, 1 meter in width, and 2 meters in height. The machine offers a tear-out force of 45 kN and a dredging depth of 3846 mm.

Crawler Excavators SDLG LG665

Technical specs - LG665 SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.1 t
Transport length
5 m
Transport width
1 m
Transport height
2 m
Bucket capacity
0.22 m³
Undercarriage
SL
Track width
400 mm
Boom
MB
Max. Reach horizontal
5.99 m
Dredging depth
3.846 m
Tear-out force
45 kN
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
35.5 kW
Revolutions at max torque
2400 rpm
Max. torque
217 Nm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, displacement, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

SDLG LG665 FAQ

When was the SDLG LG665 manufactured?

The SDLG LG665 was first produced in 2013.

How much does the SDLG LG665 weigh?

The SDLG LG665 weighs 6.1 tons.

What are the transport dimensions of the SDLG LG665?

The SDLG LG665 has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters.

What are the undercarriage specifications of the SDLG LG665 crawler excavator?

The SDLG LG665 crawler excavator has a standard undercarriage with a track width of 400 mm.

What are the excavation performance specifications of the SDLG LG665 crawler excavator?

The SDLG LG665 crawler excavator has a dredging depth of 3.846 meters, a maximum horizontal reach of 5.99 meters, and is equipped with a monobloc boom.

What is the tear-out force of the SDLG LG665 crawler excavator?

The SDLG LG665 crawler excavator has a tear-out force of 45 kN.

What is the bucket capacity of the SDLG LG665 crawler excavator?

The SDLG LG665 crawler excavator has a bucket capacity of 0.22 cubic meters.
