LG6250E SDLG excavator specs & Dimensions (2018 - 2026)

SDLG LG6250E is a crawler excavator manufactured since 2018. It has a weight of 24.3 tons, a transport length of 10.17 meters, a t…

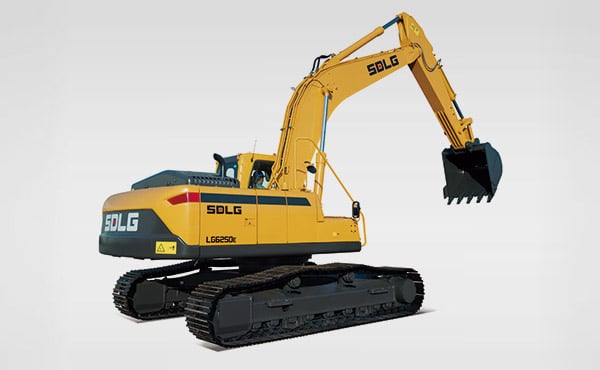

SDLG LG6250E is a crawler excavator manufactured since 2018. It has a weight of 24.3 tons, a transport length of 10.17 meters, a transport width of 3.19 meters, and a transport height of 3.04 meters. The excavator features a tear-out force of 176 kN and a dredging depth of 6.98 meters. Its bucket capacity ranges from a minimum of 1 cubic meter to a maximum of 1.45 cubic meters.

Crawler Excavators SDLG LG6250E

Technical specs - LG6250E SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.3 t
Transport length
10.17 m
Transport width
3.19 m
Transport height
3.04 m
Bucket capacity
1.45 m³
Bucket capacity min.
1 m³
Bucket capacity max.
1.45 m³
Dredging depth
6.98 m
Tear-out force
176 kN
Model series
E
Engine manuf.
Deutz
Engine type
N/A
Engine power
134 kW

More technical details, like: undercarriage, track width, boom, max. reach horizontal, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

SDLG LG6250E FAQ

When was the SDLG LG6250E manufactured?

The SDLG LG6250E was first produced in 2018.

How much does the SDLG LG6250E weigh?

The SDLG LG6250E weighs 24.3 tons.

What are the transport dimensions of the SDLG LG6250E crawler excavator?

The SDLG LG6250E crawler excavator has a transport length of 10.17 meters, a transport width of 3.19 meters, and a transport height of 3.04 meters.

What is the dredging depth capability of the SDLG LG6250E excavator?

The SDLG LG6250E excavator has a dredging depth of 6.98 meters.

What is the tear-out force of the SDLG LG6250E?

The SDLG LG6250E has a tear-out force of 176 kN. No power rating data is provided in the source.

What are the bucket capacity specifications of the SDLG LG6250E crawler excavator?

The SDLG LG6250E has a bucket capacity ranging from 1 to 1.45 cubic meters, with a nominal bucket capacity of 1.45 cubic meters.
