LG6235E SDLG excavator specs & Dimensions (2018 - 2026)

SDLG LG6235E is a crawler excavator manufactured since 2018, with a weight of 22.3 tons. It has a transport length of 9.7 meters, …

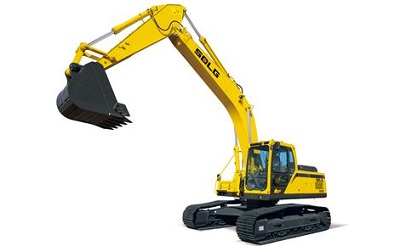

SDLG LG6235E is a crawler excavator manufactured since 2018, with a weight of 22.3 tons. It has a transport length of 9.7 meters, a transport width of 2.99 meters, and a transport height of 2.94 meters. The dredging depth is 6.73 meters, and the bucket capacity is 1.1 cubic meters.

Crawler Excavators SDLG LG6235E

Technical specs - LG6235E SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.3 t
Transport length
9.7 m
Transport width
2.99 m
Transport height
2.94 m
Bucket capacity
1.1 m³
Dredging depth
6.73 m
Model series
E
Engine manuf.
Deutz
Engine type
BF6M2012C
Engine power
127 kW
Emission level
Tier 2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, max. reach horizontal, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, max. reach horizontal, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

SDLG LG6235E FAQ

When was the SDLG LG6235E manufactured?

The SDLG LG6235E was first produced in 2018.

How much does the SDLG LG6235E weigh?

The SDLG LG6235E weighs 22.3 tons.

What are the transport dimensions of the SDLG LG6235E crawler excavator?

The SDLG LG6235E has a transport length of 9.7 meters, a transport width of 2.99 meters, and a transport height of 2.94 meters.

What is the dredging depth of the SDLG LG6235E crawler excavator?

The SDLG LG6235E crawler excavator has a dredging depth of 6.73 meters.

What is the bucket capacity of the SDLG LG6235E crawler excavator?

The SDLG LG6235E crawler excavator has a bucket capacity of 1.1 cubic meters.
