E690F SDLG excavator specs & Dimensions (2018 - 2026)

SDLG E690F is a Crawler Excavator manufactured since 2018, with a weight of 8.55 tons. It has a transport length of 6.34 meters, a…

SDLG E690F is a Crawler Excavator manufactured since 2018, with a weight of 8.55 tons. It has a transport length of 6.34 meters, a transport width of 2.265 meters, and a transport height of 2.6 meters. The excavator features a tear-out force of 60 kN and a bucket capacity ranging from 0.13 m³ to 0.32 m³. It is equipped with a blade as special equipment.

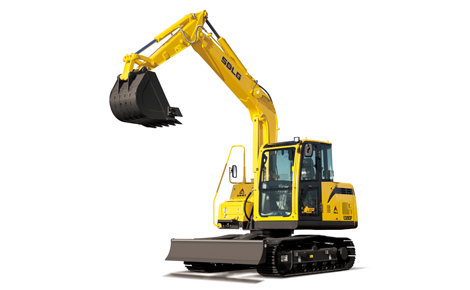

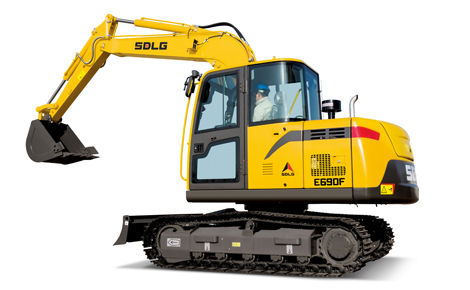

Crawler Excavators SDLG E690F
Crawler Excavators SDLG E690F
Crawler Excavators SDLG E690F
Crawler Excavators SDLG E690F

Technical specs - E690F SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.55 t
Transport length
6.34 m
Transport width
2.265 m
Transport height
2.6 m
Bucket capacity
0.32 m³
Bucket capacity min.
0.13 m³
Bucket capacity max.
0.32 m³
Tear-out force
60 kN
Model series
F
Engine manuf.
Yanmar
Engine type
N/A

More technical details, like: undercarriage, track width, boom, max. reach horizontal, dredging depth, bucket width, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: undercarriage, track width, boom, max. reach horizontal, dredging depth, bucket width, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

SDLG E690F FAQ

When was the SDLG E690F manufactured?

The SDLG E690F was first produced in 2018.

How much does the SDLG E690F weigh?

The SDLG E690F weighs 8.55 tons.

What are the transport dimensions of the SDLG E690F crawler excavator?

The SDLG E690F crawler excavator has a transport length of 6.34 meters, a transport width of 2.27 meters, and a transport height of 2.6 meters.

What is the power rating of the SDLG E690F?

The power rating data for the SDLG E690F is not available.

What are the bucket capacity specifications of the SDLG E690F crawler excavator?

The SDLG E690F crawler excavator has a bucket capacity of 0.32 cubic meters, with a maximum bucket capacity of 0.32 cubic meters and a minimum bucket capacity of 0.13 cubic meters.

How much is a SDLG E690F Crawler excavator (2018u20132025) worth?

The residual value of the SDLG E690F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
