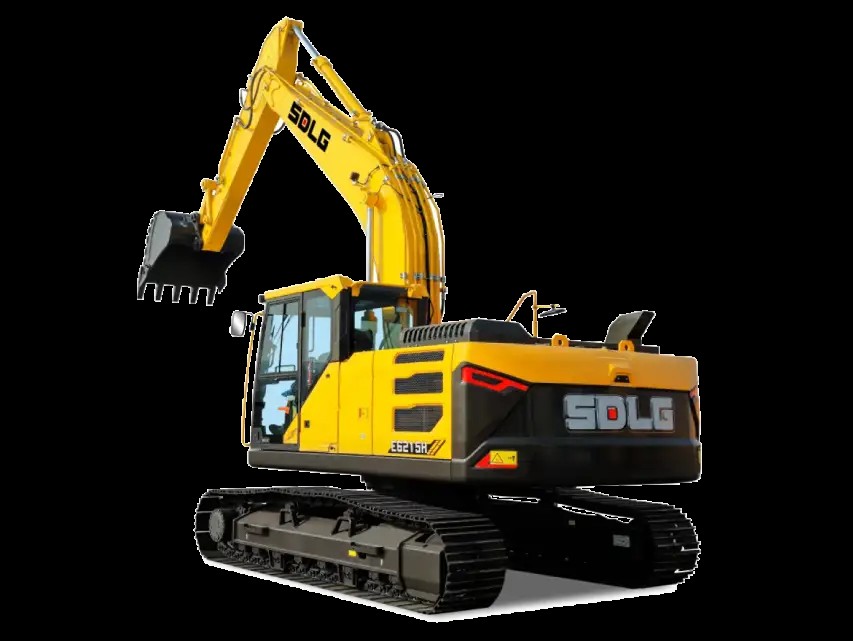

E6215H SDLG excavator specs & Dimensions (2026 - 2026)

Weight: 21.8t – Transport length: 9.72m – Transport width: 3.19m – Transport height: 2.94m – Bucket capacity: 1m³ – Track width: 6…

Weight: 21.8t – Transport length: 9.72m – Transport width: 3.19m – Transport height: 2.94m – Bucket capacity: 1m³ – Track width: 600mm

Check out detailed specifications, information and technical data for SDLG E6215H excavator manufactured between 2026 - 2026. Get more in-depth insight with SDLG E6215H digger specifications. See information, like: Weight: 21.8t – Transport length: 9.72m – Transport width: 3.19m – Transport height: 2.94m – Bucket capacity: 1m³ – Track width: 600mm and more.

Technical specs - E6215H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.8 t
Transport length
9.72 m
Transport width
3.19 m
Transport height
2.94 m
Bucket capacity
1 m³
Track width
600 mm
Max. Reach horizontal
9.94 m
Dredging depth
6.73 m
Tear-out force
200 kN
Model series
H
Engine manuf.
Cummins
Engine type
B4.5
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
780 Nm
No. of cylinders
4
Cylinder bore x stroke
107×124 mm
Emission level
Stage V / Tier4f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
