TC 125 Schaeff excavator specs & Dimensions (2017 - 2026)

Schaeff TC 125 is a Crawler Excavator manufactured since 2017. It has a weight of 11.3 t and a track width of 500 mm. The transpor…

Schaeff TC 125 is a Crawler Excavator manufactured since 2017. It has a weight of 11.3 t and a track width of 500 mm. The transport dimensions are 7.35 m in length, 2.5 m in width, and 2.87 m in height. The machine features a tear-out force of 61 kN, a dredging depth of 4.56 m, and a maximum horizontal reach of 8.3 m. The bucket width is 0.6 m with a capacity of 0.254 m³. Special equipment includes a blade, overload alert, and a mechanical quick hitch.

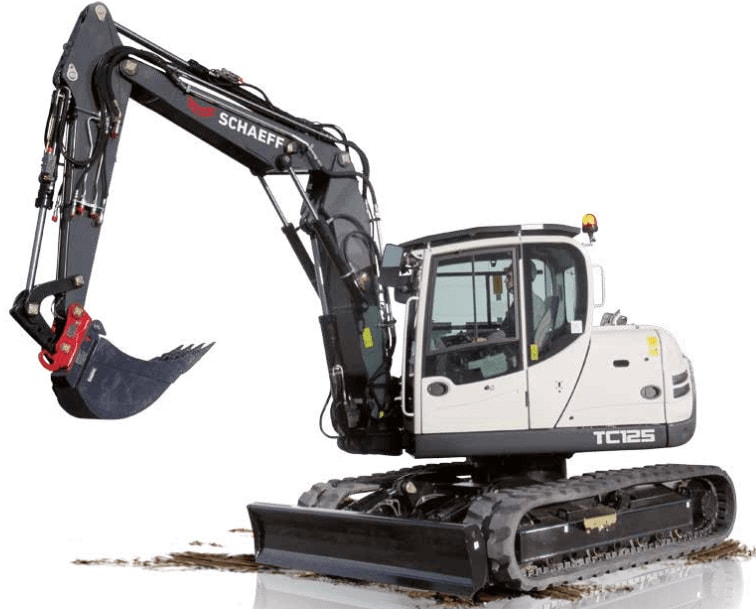

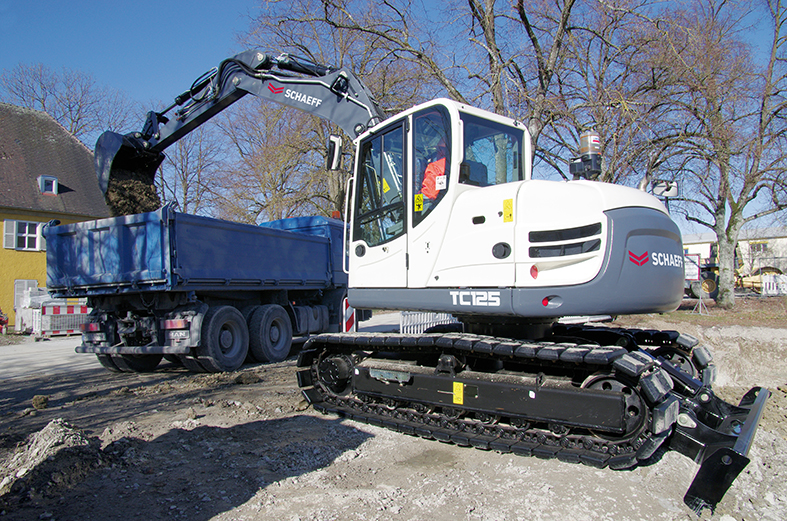

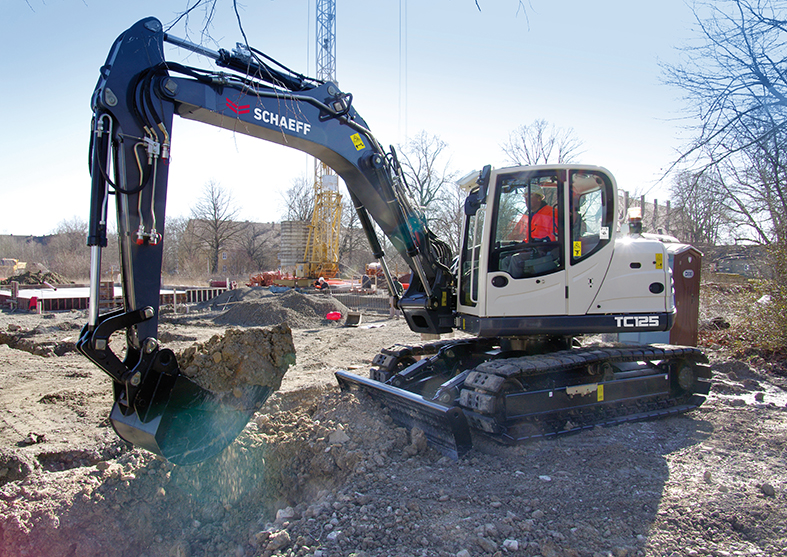

Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125
Crawler Excavators Schaeff TC 125

Technical specs - TC 125 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.3 t
Transport length
7.35 m
Transport width
2.5 m
Transport height
2.87 m
Bucket capacity
0.254 m³
Undercarriage
SL
Track width
500 mm
Boom
VA
Max. Reach horizontal
8.3 m
Dredging depth
4.56 m
Tear-out force
61 kN
Bucket width
0.6 m
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
Max. torque
400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x120 mm
Emission level
EUIV / T4F

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TC 125 FAQ

When was the Schaeff TC 125 manufactured?

The Schaeff TC 125 was first produced in 2017.

How much does the Schaeff TC 125 weigh?

The Schaeff TC 125 weighs 11.3 tons.

What are the transport dimensions of the Schaeff TC 125?

The Schaeff TC 125 has a transport length of 7.35 meters, a transport width of 2.5 meters, and a transport height of 2.87 meters.

What are the undercarriage specifications of the Schaeff TC 125?

The Schaeff TC 125 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Schaeff TC 125?

The Schaeff TC 125 has a dredging depth of 4.56 meters, a maximum horizontal reach of 8.3 meters, and features an adjustable boom.

What are the power ratings of the Schaeff TC 125?

There are no power rating data available for the Schaeff TC 125 in the provided information.

What are the specifications of the primary work tool on the Schaeff TC 125?

The primary work tool of the Schaeff TC 125 has a bucket capacity of 0.254 cubic meters and a bucket width of 0.6 meters.
