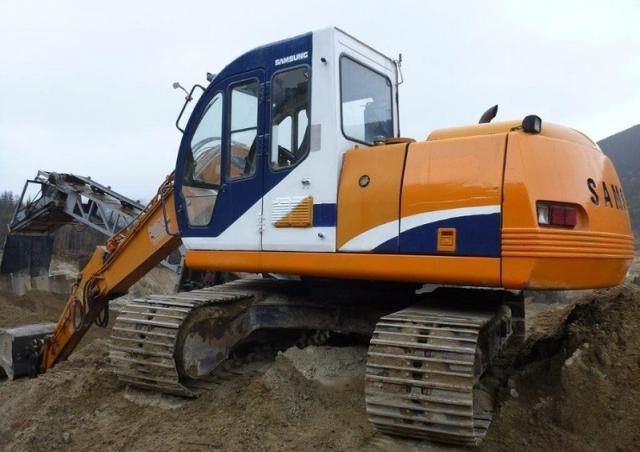

SE 130 LCM-3 Samsung excavator specs & Dimensions (1999 - 2026)

Samsung SE 130 LCM-3 is a crawler excavator manufactured since 1999, with a weight of 15 tons. It features a track width of 900 mm…

Samsung SE 130 LCM-3 is a crawler excavator manufactured since 1999, with a weight of 15 tons. It features a track width of 900 mm, a transport length of 7 meters, a transport width of 2 meters, and a transport height of 3 meters. The bucket width is 1.205 meters.

Crawler Excavators Samsung SE 130 LCM-3

Technical specs - SE 130 LCM-3 Samsung

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Transport length
7 m
Transport width
2 m
Transport height
3 m
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
8.82 m
Dredging depth
5.88 m
Tear-out force
140.2 kN
Bucket width
1.205 m
Engine manuf.
Cummins
Engine type
4BTA3.9-C
Engine power
79.9 kW
Displacement
3.92 l
Revolutions at max torque
1600 rpm
Max. torque
431.5 Nm
No. of cylinders
4
Cylinder bore x stroke
102 x 120 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Samsung SE 130 LCM-3 FAQ

When was the Samsung SE 130 LCM-3 manufactured?

The Samsung SE 130 LCM-3 was first produced in 1999.

How much does the Samsung SE 130 LCM-3 weigh?

The Samsung SE 130 LCM-3 weighs 15 tons.

What are the transport dimensions of the Samsung SE 130 LCM-3?

The Samsung SE 130 LCM-3 has a transport length of 7 meters, a transport width of 2 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Samsung SE 130 LCM-3?

The Samsung SE 130 LCM-3 has a long undercarriage with a track width of 900 mm.

What are the excavation performance specifications of the Samsung SE 130 LCM-3?

The Samsung SE 130 LCM-3 has a dredging depth of 5.88 meters, a maximum horizontal reach of 8.82 meters, and features a monobloc boom.

What are the power ratings of the Samsung SE 130 LCM-3?

There are no power ratings available for the Samsung SE 130 LCM-3 in the provided data.

What is the bucket width of the Samsung SE 130 LCM-3 excavator?

The bucket width of the Samsung SE 130 LCM-3 excavator is 1.205 meters.

How much is a Samsung SE 130 LCM-3 Crawler excavator (1999u20132025) worth?

The residual value of the Samsung SE 130 LCM-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
