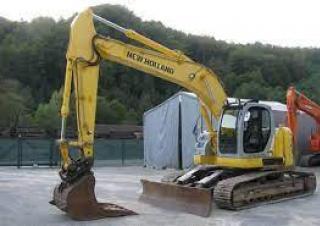

E 235 SRLC New Holland excavator specs & Dimensions (2006 - 2007)

New Holland E 235 SRLC is a crawler excavator manufactured from 2006 to 2007, with a weight of 25.3 tons. It features a track widt…

New Holland E 235 SRLC is a crawler excavator manufactured from 2006 to 2007, with a weight of 25.3 tons. It features a track width of 600 mm, a transport length of 8.89 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters. The excavator has a bucket capacity of 1 cubic meter and is equipped with a blade.

Crawler Excavators New Holland E 235 SRLC

Technical specs - E 235 SRLC New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.3 t
Transport length
8.89 m
Transport width
3.19 m
Transport height
3.09 m
Bucket capacity
1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Model series
E
Engine manuf.
Hino
Engine type
J 05 E-TA
Engine power
118 kW
Displacement
5.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E 235 SRLC FAQ

When was the New Holland E 235 SRLC manufactured?

The New Holland E 235 SRLC was manufactured from 2006 to 2007.

How much does the New Holland E 235 SRLC weigh?

The New Holland E 235 SRLC weighs 25.3 tons.

What are the transport dimensions of the New Holland E 235 SRLC crawler excavator?

The New Holland E 235 SRLC has a transport length of 8.89 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the New Holland E 235 SRLC?

The New Holland E 235 SRLC has a long undercarriage with a track width of 600 mm.

What type of boom does the New Holland E 235 SRLC have?

The New Holland E 235 SRLC has a Monobloc boom.

What is the bucket capacity of the New Holland E 235 SRLC?

The New Holland E 235 SRLC has a bucket capacity of 1 cubic meter.

How much is a New Holland E 235 SRLC Crawler excavator (2006u20132007) worth?

The residual value of the New Holland E 235 SRLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
