E 225 B SR New Holland excavator specs & Dimensions (2008 - 2008)

New Holland E 225 B SR is a Crawler Excavator manufactured in 2008, with a weight of 22 tons. It features a track width of 600 mm,…

New Holland E 225 B SR is a Crawler Excavator manufactured in 2008, with a weight of 22 tons. It features a track width of 600 mm, a transport length of 8.89 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters. The machine has a tear-out force of 124 kN and comes equipped with special equipment including a blade and an overload alert system.

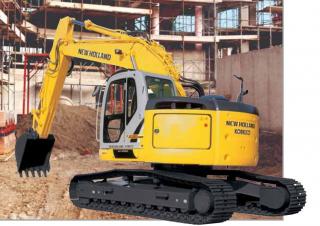

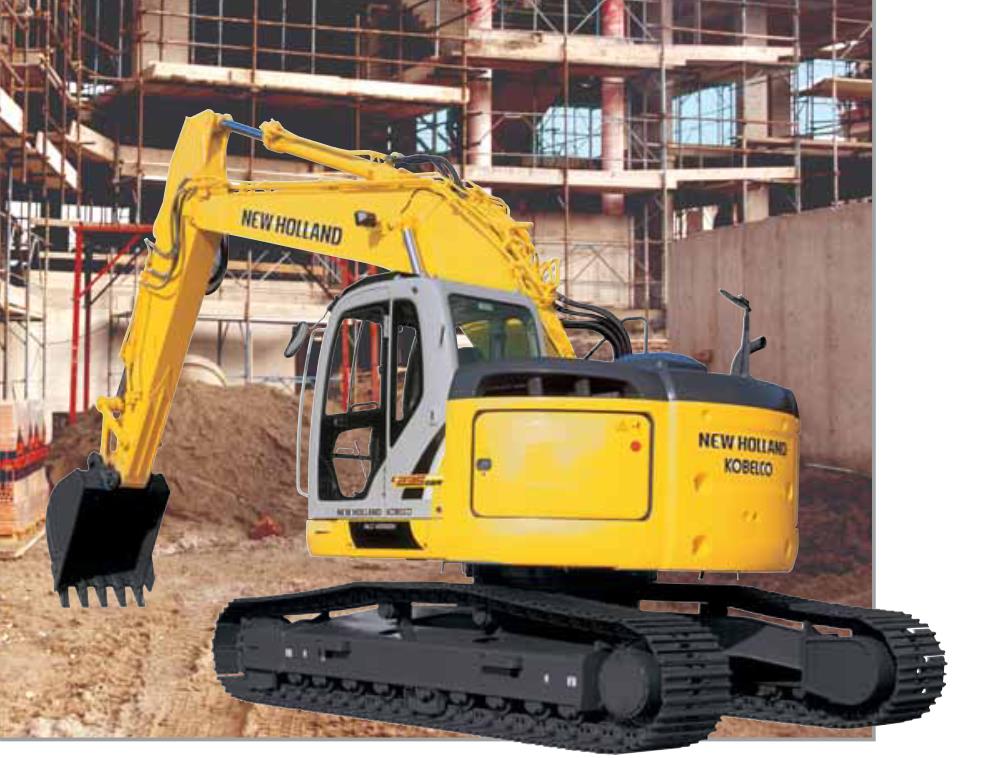

Crawler Excavators New Holland E 225 B SR

Technical specs - E 225 B SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
8.89 m
Transport width
3.19 m
Transport height
3.09 m
Bucket capacity
0.8 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.57 m
Dredging depth
6.59 m
Tear-out force
124 kN
Model series
E
Engine manuf.
Hino
Engine type
J 05 E-TA
Engine power
118 kW
Displacement
5.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E 225 B SR FAQ

When was the New Holland E 225 B SR manufactured?

The New Holland E 225 B SR was produced in 2008, with production starting and ending in that year.

How much does the New Holland E 225 B SR weigh?

The New Holland E 225 B SR weighs 22 tons.

What are the transport dimensions of the New Holland E 225 B SR crawler excavator?

The New Holland E 225 B SR has a transport length of 8.89 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the New Holland E 225 B SR?

The New Holland E 225 B SR has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E 225 B SR?

The New Holland E 225 B SR has a dredging depth of 6.59 meters, a maximum horizontal reach of 10.57 meters, and features a monobloc boom.

What is the power rating of the New Holland E 225 B SR?

There is no power rating data available for the New Holland E 225 B SR in the provided source.

What is the bucket capacity of the New Holland E 225 B SR?

The bucket capacity of the New Holland E 225 B SR is 0.8 cubic meters.
