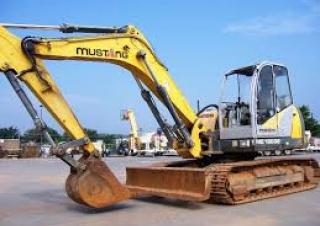

ME12002 Mustang excavator specs & Dimensions (2009 - 2025)

Mustang ME12002 is a Crawler Excavator manufactured since 2009. It has a weight of 11 tons and a track width of 500 mm. The transp…

Mustang ME12002 is a Crawler Excavator manufactured since 2009. It has a weight of 11 tons and a track width of 500 mm. The transport dimensions are 7.087 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 72 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 7 meters. The bucket width is 2 meters, and it is equipped with a blade.

Crawler Excavators Mustang ME12002

Technical specs - ME12002 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.52 t
Transport length
7.087 m
Transport width
2.4 m
Transport height
2.79 m
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.76 m
Dredging depth
4.8 m
Tear-out force
72.3 kN
Bucket width
2.39 m
Engine manuf.
John Deere
Engine type
4045TF270
Engine power
70 kW
Displacement
4.54 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang ME12002 FAQ

When was the Mustang ME12002 manufactured?

The Mustang ME12002 was first produced in 2009.

How much does the Mustang ME12002 weigh?

The Mustang ME12002 weighs 11.52 tons.

What are the transport dimensions of the Mustang ME12002 crawler excavator?

The Mustang ME12002 has transport dimensions of 7.09 meters in length, 2.4 meters in width, and 2.79 meters in height.

What are the undercarriage specifications of the Mustang ME12002?

The Mustang ME12002 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mustang ME12002 crawler excavator?

The Mustang ME12002 crawler excavator has a dredging depth of 4.8 meters, a maximum horizontal reach of 7.76 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Mustang ME12002?

The Mustang ME12002 has a tear-out force of 72.3 kN.

What is the bucket width of the Mustang ME12002 crawler excavator?

The bucket width of the Mustang ME12002 crawler excavator is 2.39 meters.

How much is a Mustang ME12002 Crawler excavator (2009u20132025) worth?

The residual value of the Mustang ME12002 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
