800Z Mustang excavator specs & Dimensions (2012 - 2025)

Mustang 800Z is a Crawler Excavator manufactured since 2012. It has a weight of 8.225 tons and a track width of 450 mm. The transp…

Mustang 800Z is a Crawler Excavator manufactured since 2012. It has a weight of 8.225 tons and a track width of 450 mm. The transport dimensions are 6 meters in length, 2 meters in width, and 2 meters in height. The machine features a tear-out force of 50 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 7 meters. Special equipment includes air conditioning and a blade.

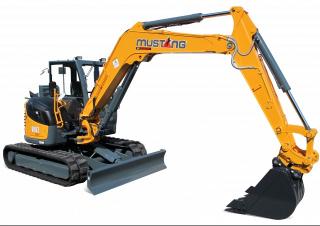

Crawler Excavators Mustang 800Z

Technical specs - 800Z Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.23 t
Transport length
6.46 m
Transport width
2.27 m
Transport height
2.69 m
Undercarriage
HD
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.14 m
Dredging depth
4.38 m
Tear-out force
50.41 kN
Engine manuf.
Yanmar
Engine type
4TNV98-ZWBV1
Engine power
40.7 kW
Displacement
3.32 l
Emission level
Tier IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang 800Z FAQ

When was the Mustang 800Z manufactured?

The Mustang 800Z was first produced in 2012.

How much does the Mustang 800Z weigh?

The Mustang 800Z weighs 8.23 tons.

What are the transport dimensions of the Mustang 800Z crawler excavator?

The Mustang 800Z has a transport length of 6.46 meters, a transport width of 2.27 meters, and a transport height of 2.69 meters.

What are the undercarriage specifications of the Mustang 800Z?

The Mustang 800Z has a heavy duty undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Mustang 800Z crawler excavator?

The Mustang 800Z crawler excavator has a dredging depth of 4.38 meters, a maximum horizontal reach of 7.14 meters, and features a monobloc boom.

What are the power ratings of the Mustang 800Z?

There is no power rating information available for the Mustang 800Z in the provided data.
