714 MC Mecalac excavator specs & Dimensions (2008 - 2012)

Mecalac 714 MC is a crawler excavator manufactured from 2008 to 2012. It has a weight of 13.5 tons and a track width of 500 mm. Th…

Mecalac 714 MC is a crawler excavator manufactured from 2008 to 2012. It has a weight of 13.5 tons and a track width of 500 mm. The transport dimensions are 3.9 meters in length, 2.45 meters in width, and 3.36 meters in height. The machine features a tear-out force of 6200 kN and a bucket width of 1 meter. It is equipped with an overload alert system.

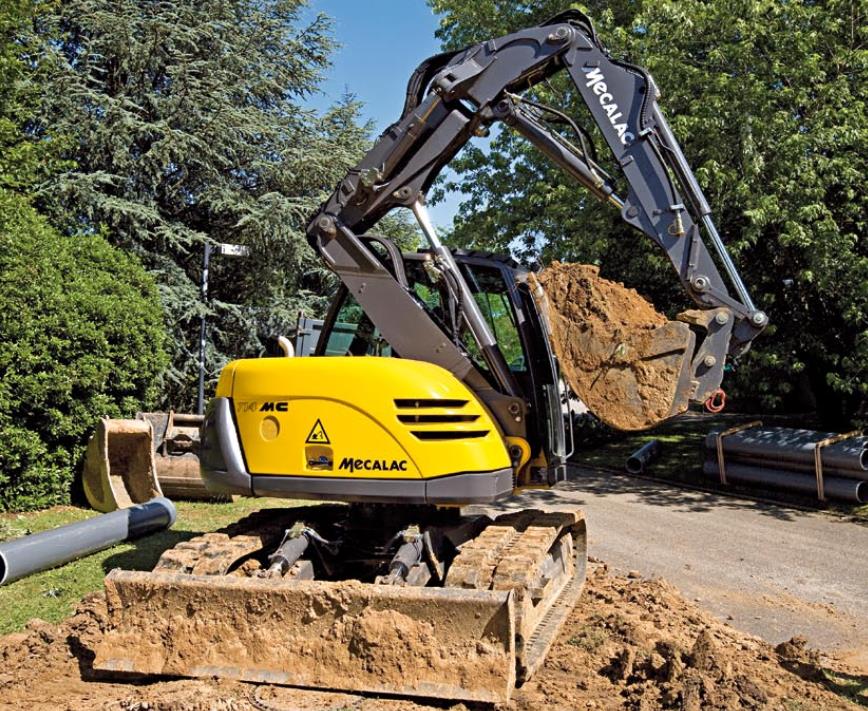

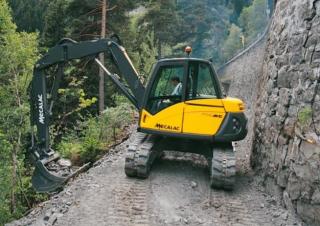

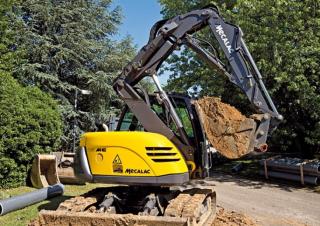

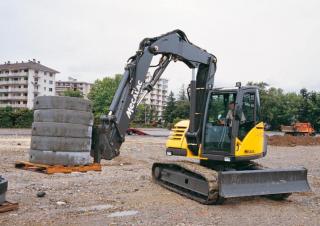

Crawler Excavators Mecalac 714 MC
Crawler Excavators Mecalac 714 MC
Crawler Excavators Mecalac 714 MC
Crawler Excavators Mecalac 714 MC
Crawler Excavators Mecalac 714 MC
Crawler Excavators Mecalac 714 MC

Technical specs - 714 MC Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Transport length
3.9 m
Transport width
2.45 m
Transport height
3.36 m
Bucket capacity
0.63 m³
Undercarriage
SL
Track width
500 mm
Boom
VA
Max. Reach horizontal
8.9 m
Dredging depth
5.45 m
Tear-out force
6200 kN
Bucket width
1 m
Model series
MC
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
88 kW

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 714 MC FAQ

When was the Mecalac 714 MC manufactured?

The Mecalac 714 MC was manufactured from 2008 to 2012.

How much does the Mecalac 714 MC weigh?

The Mecalac 714 MC weighs 13.5 tons.

What are the transport dimensions of the Mecalac 714 MC?

The Mecalac 714 MC has a transport length of 3.9 meters, a transport width of 2.45 meters, and a transport height of 3.36 meters.

What are the undercarriage specifications of the Mecalac 714 MC?

The Mecalac 714 MC has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mecalac 714 MC?

The Mecalac 714 MC has an adjustable boom, a dredging depth of 5.45 meters, and a maximum horizontal reach of 8.9 meters.

What is the tear-out force of the Mecalac 714 MC, given that no other power ratings are provided?

The Mecalac 714 MC has a tear-out force of 6200 kN. No other power ratings are available in the provided data.

What are the bucket specifications of the Mecalac 714 MC excavator?

The Mecalac 714 MC has a bucket capacity of 0.63 cubic meters and a bucket width of 1 meter.

How much is a Mecalac 714 MC Crawler excavator (2008u20132012) worth?

The residual value of the Mecalac 714 MC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
