712 MC Mecalac excavator specs & Dimensions (2007 - 2014)

Mecalac 712 MC is a crawler excavator manufactured from 2007 to 2014. It has a weight of 11.2 tons and a track width of 500 mm. Th…

Mecalac 712 MC is a crawler excavator manufactured from 2007 to 2014. It has a weight of 11.2 tons and a track width of 500 mm. The transport dimensions are 3.27 meters in length, 2.4 meters in width, and 3.1 meters in height. The tear-out force is 45 kN, and it is equipped with a blade.

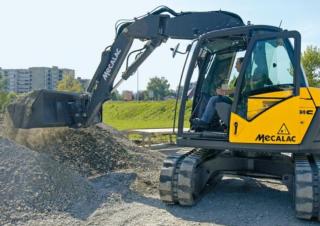

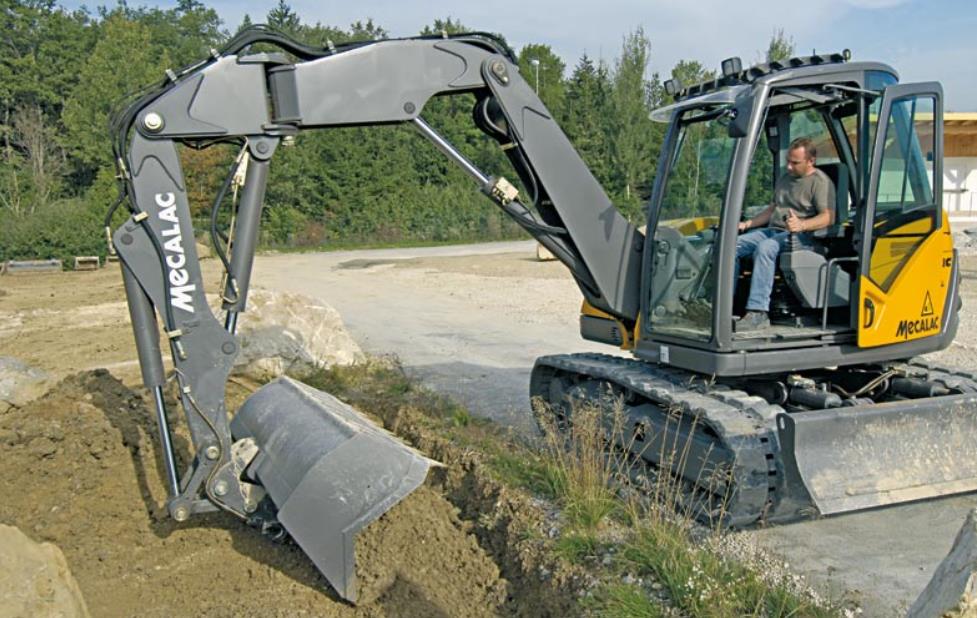

Crawler Excavators Mecalac 712 MC
Crawler Excavators Mecalac 712 MC
Crawler Excavators Mecalac 712 MC
Crawler Excavators Mecalac 712 MC
Crawler Excavators Mecalac 712 MC
Crawler Excavators Mecalac 712 MC

Technical specs - 712 MC Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.2 t
Transport length
3.27 m
Transport width
2.4 m
Transport height
3.1 m
Bucket capacity
0.49 m³
Undercarriage
SL
Track width
500 mm
Boom
VA/SKA
Max. Reach horizontal
7.6 m
Dredging depth
4.2 m
Tear-out force
45 kN
Bucket width
0.9 m
Model series
MC
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
75 kW
Displacement
4.036 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 712 MC FAQ

When was the Mecalac 712 MC manufactured?

The Mecalac 712 MC was manufactured from 2007 to 2014.

How much does the Mecalac 712 MC weigh?

The Mecalac 712 MC weighs 11.2 tons.

What are the transport dimensions of the Mecalac 712 MC crawler excavator?

The Mecalac 712 MC has a transport length of 3.27 meters, a transport width of 2.4 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Mecalac 712 MC?

The Mecalac 712 MC has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mecalac 712 MC?

The Mecalac 712 MC has a dredging depth of 4.2 meters, a maximum horizontal reach of 7.6 meters, and features a lateral articulated, adjustable boom.

What is the tear-out force of the Mecalac 712 MC?

The Mecalac 712 MC has a tear-out force of 45 kN.

What are the bucket specifications of the Mecalac 712 MC crawler excavator?

The Mecalac 712 MC crawler excavator has a bucket capacity of 0.49 cubic meters and a bucket width of 0.9 meters.

How much is a Mecalac 712 MC Crawler excavator (2007u20132014) worth?

The residual value of the Mecalac 712 MC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
