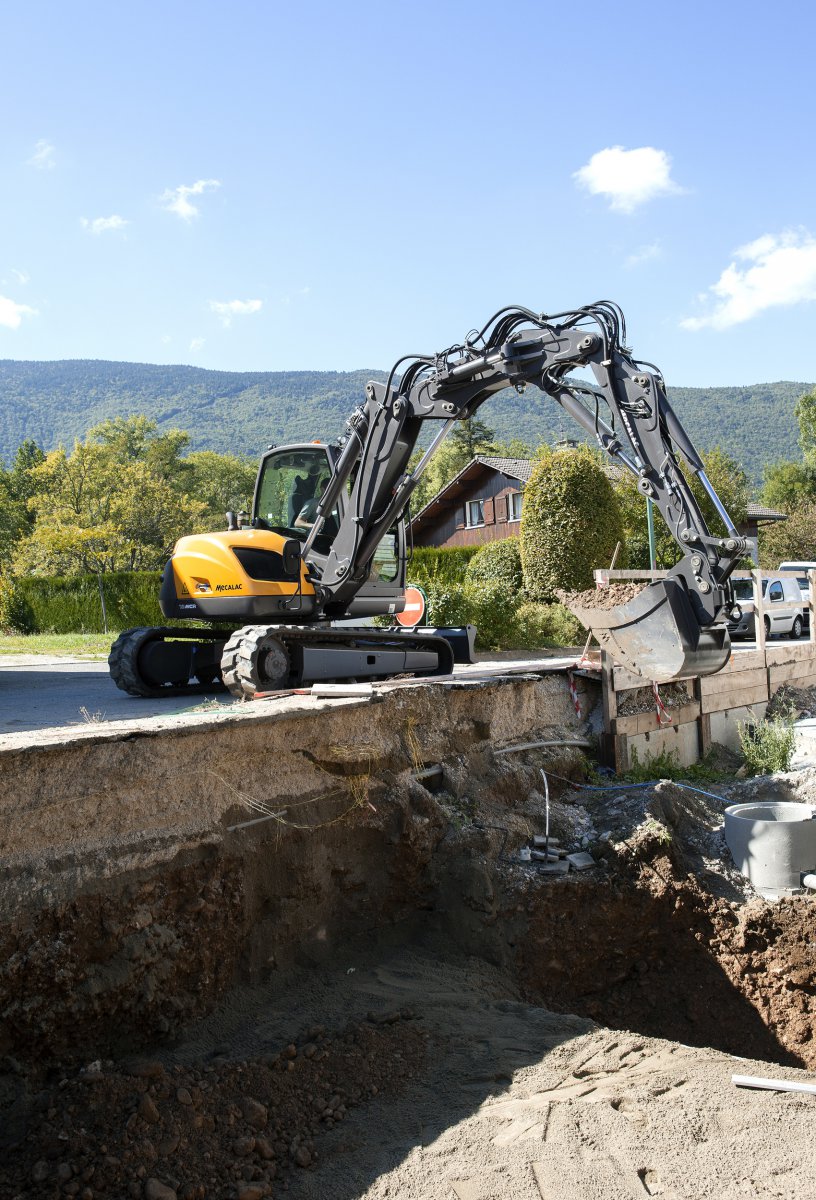

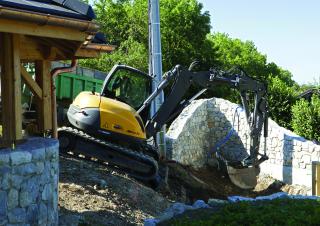

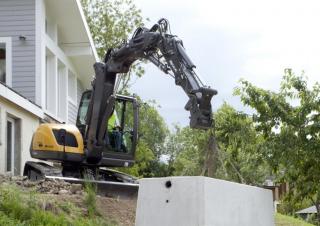

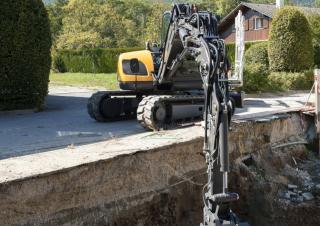

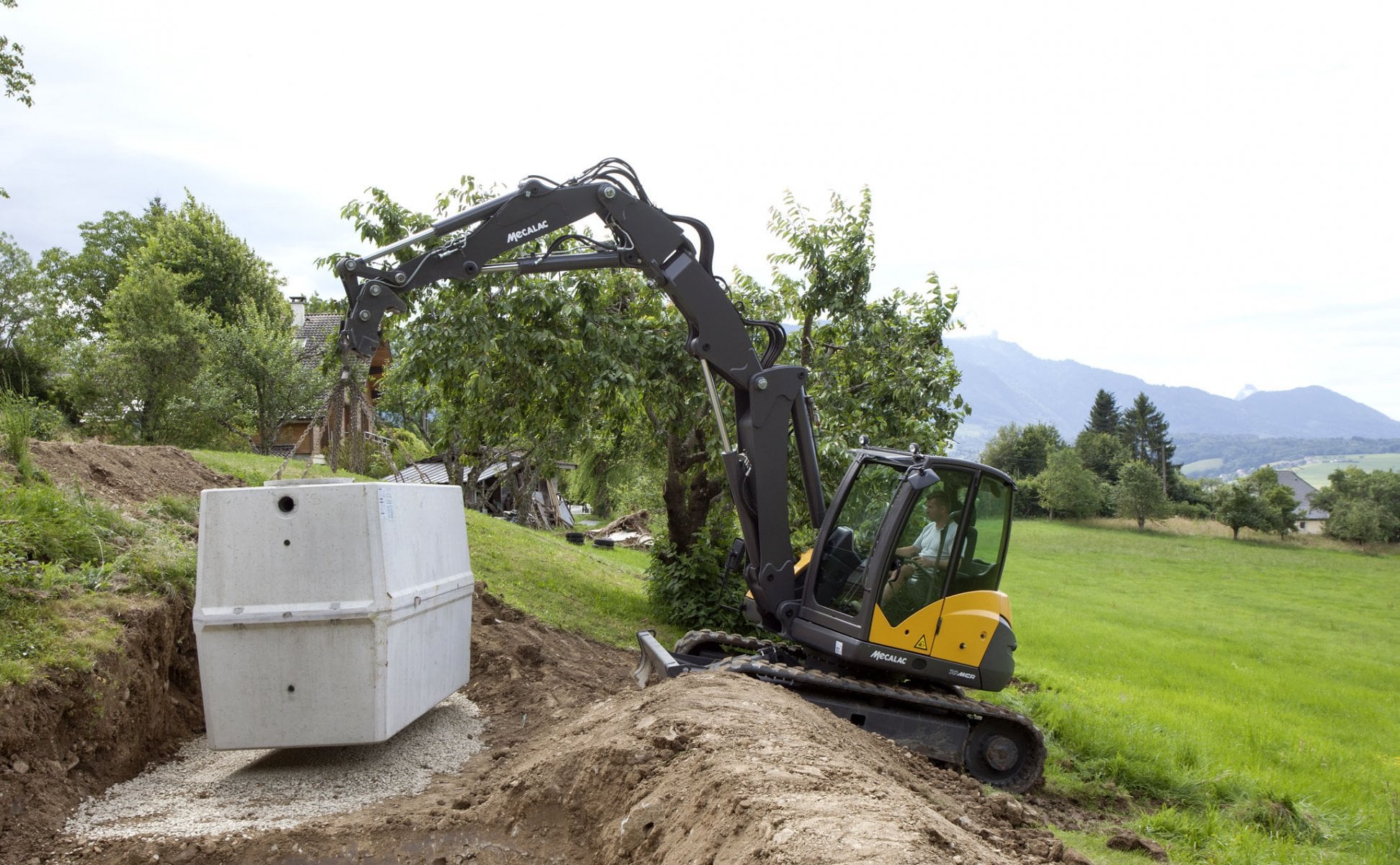

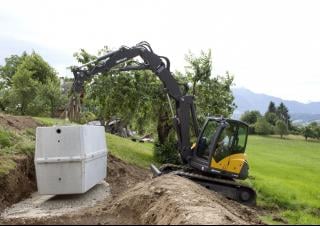

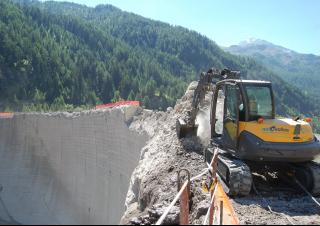

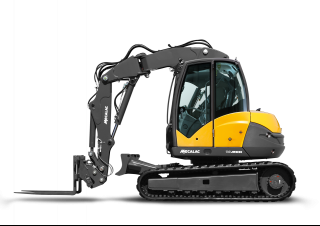

10MCR Mecalac excavator specs & Dimensions (2016 - 2021)

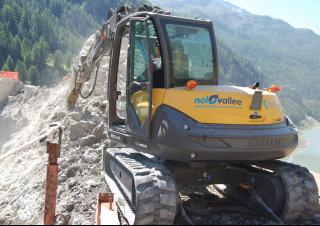

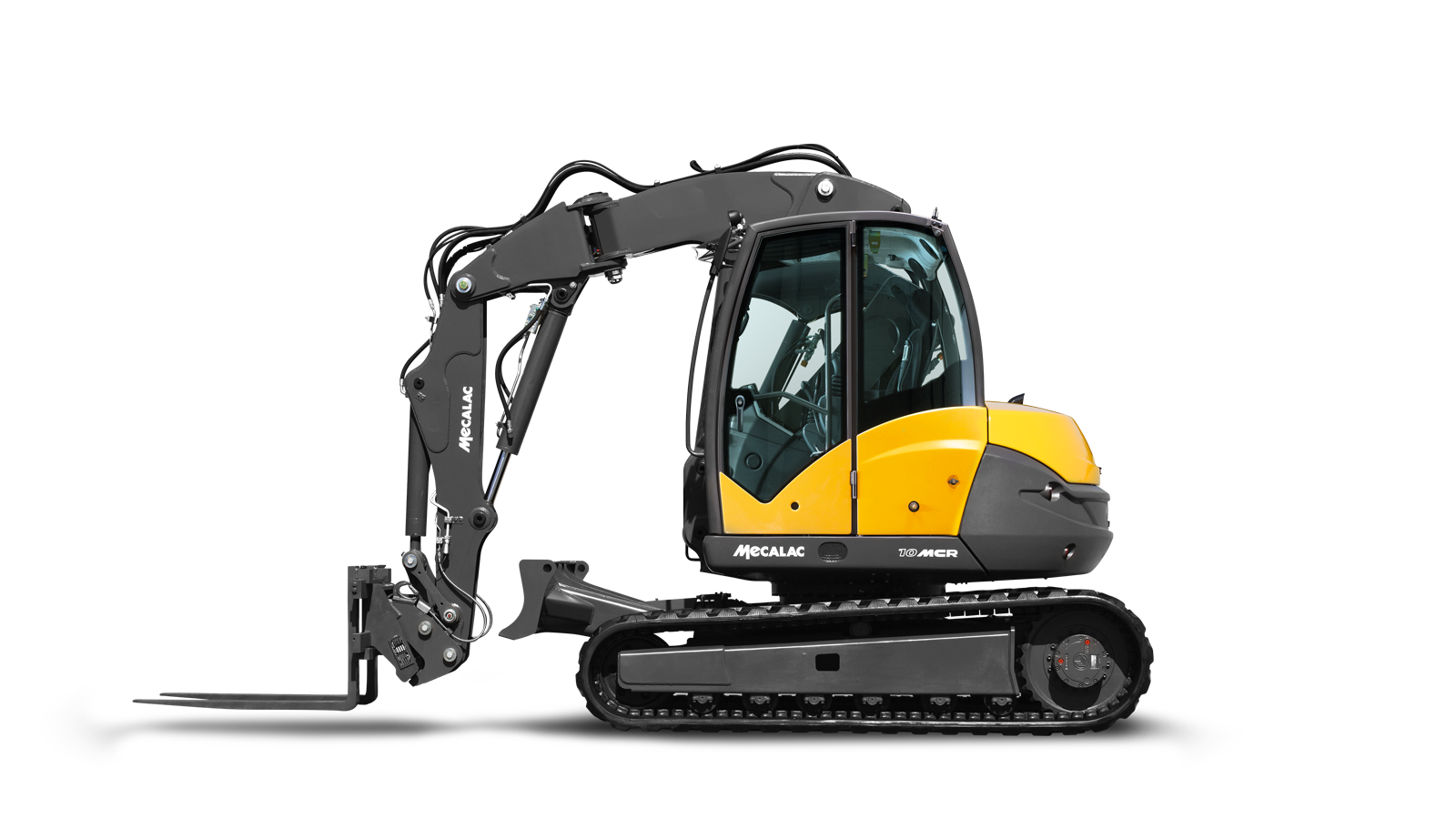

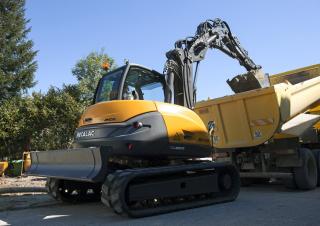

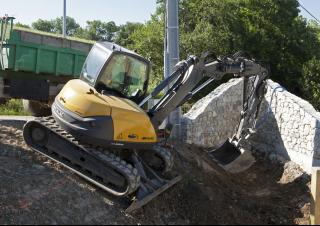

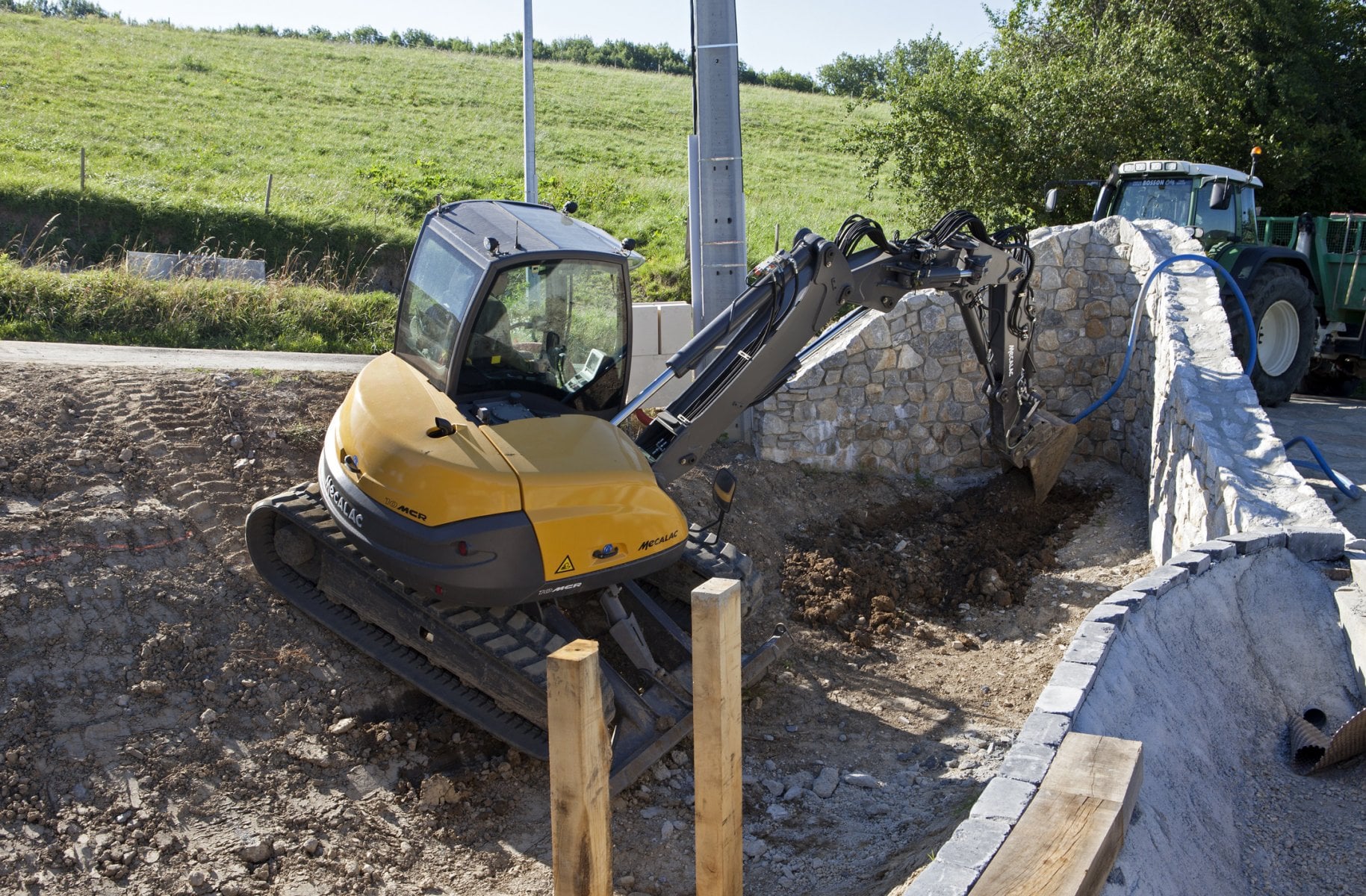

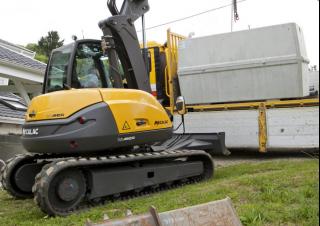

Mecalac 10MCR is a Crawler Excavator manufactured from 2016 to 2021, with a weight of 9.4 tons. It features a track width of 450 m…

Mecalac 10MCR is a Crawler Excavator manufactured from 2016 to 2021, with a weight of 9.4 tons. It features a track width of 450 mm, a transport length of 3.4 meters, a transport width of 2.3 meters, and a transport height of 2.69 meters. The machine has a tear-out force of 34 kN and a dredging depth of 4.2 meters. It comes with a bucket capacity of 0.36 cubic meters and includes special equipment such as a blade and a hydraulic quick hitch.

10MCR

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 10MCR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.4 t

Transport length: 3.4 m

Transport width: 2.3 m

Transport height: 2.69 m

Bucket capacity: 0.36 m³

Undercarriage: SL

Track width: 450 mm

Boom: VA/SKA

Max. Reach horizontal: 7.6 m

Dredging depth: 4.2 m

Tear-out force: 34 kN

Bucket width: 0.8 m

Model series: MCR

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Revolutions at max torque: 2600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac 10MCR FAQ

When was the Mecalac 10MCR manufactured?

The Mecalac 10MCR was manufactured from 2016 to 2021.

How much does the Mecalac 10MCR weigh?

The Mecalac 10MCR weighs 9.4 tons.

What are the transport dimensions of the Mecalac 10MCR crawler excavator?

The Mecalac 10MCR has a transport length of 3.4 meters, a transport width of 2.3 meters, and a transport height of 2.69 meters.

What are the undercarriage specifications of the Mecalac 10MCR?

The Mecalac 10MCR has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Mecalac 10MCR?

The Mecalac 10MCR has a dredging depth of 4.2 meters, a maximum horizontal reach of 7.6 meters, and features a lateral articulated and adjustable boom.

What is the tear-out force of the Mecalac 10MCR?

The Mecalac 10MCR has a tear-out force of 34 kN.

What are the specifications of the primary work tool on the Mecalac 10MCR?

The primary work tool of the Mecalac 10MCR has a bucket capacity of 0.36 cubic meters and a bucket width of 0.8 meters.
