MD140BLC MDI Yutani excavator specs & Dimensions (1989 - 2000)

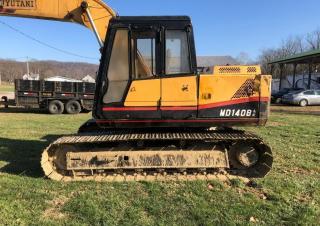

MDI Yutani MD140BLC is a crawler excavator manufactured from 1989 to 2000. It has a weight of 12.4 tons and a track width of 700 m…

MDI Yutani MD140BLC is a crawler excavator manufactured from 1989 to 2000. It has a weight of 12.4 tons and a track width of 700 mm. The transport dimensions are 7.62 meters in length, 2.69 meters in width, and 2.825 meters in height. The excavator features a tear-out force of 73.55 kN and supports bucket capacities ranging from 0.33 m³ to 0.68 m³.

Crawler Excavators MDI Yutani MD140BLC

Technical specs - MD140BLC MDI Yutani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.4 t
Transport length
7.62 m
Transport width
2.69 m
Transport height
2.825 m
Bucket capacity min.
0.33 m³
Bucket capacity max.
0.68 m³
Track width
700 mm
Boom
MB
Tear-out force
73.55 kN
Engine manuf.
Mitsubishi
Engine type
4D31T
Engine power
62.5 kW
Displacement
3.3 l

More technical details, like: bucket capacity, undercarriage, max. reach horizontal, dredging depth, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

MDI Yutani MD140BLC FAQ

When was the MDI Yutani MD140BLC manufactured?

The MDI Yutani MD140BLC was manufactured from 1989 to 2000.

How much does the MDI Yutani MD140BLC weigh?

The MDI Yutani MD140BLC weighs 12.4 tons.

What are the transport dimensions of the MDI Yutani MD140BLC crawler excavator?

The MDI Yutani MD140BLC has a transport length of 7.62 meters, a transport width of 2.69 meters, and a transport height of 2.83 meters.

What is the track width of the MDI Yutani MD140BLC crawler excavator?

The MDI Yutani MD140BLC has a track width of 700 mm.

What type of boom does the MDI Yutani MD140BLC use?

The MDI Yutani MD140BLC uses a monobloc boom.

What is the tear-out force of the MDI Yutani MD140BLC?

The MDI Yutani MD140BLC has a tear-out force of 73.55 kN.

What are the bucket capacity specifications of the MDI Yutani MD140BLC crawler excavator?

The MDI Yutani MD140BLC has a bucket capacity ranging from 0.33 to 0.68 cubic meters.
