923FN Liugong excavator specs & Dimensions (2023 - 2026)

Weight: 23t – Transport length: 9.62m – Transport width: 2.53m – Transport height: 3.115m – Bucket capacity: 1m³ – Track width: 50…

Weight: 23t – Transport length: 9.62m – Transport width: 2.53m – Transport height: 3.115m – Bucket capacity: 1m³ – Track width: 500mm

Check out detailed specifications, information and technical data for Liugong 923FN excavator manufactured between 2023 - 2026. Get more in-depth insight with Liugong 923FN digger specifications. See information, like: Weight: 23t – Transport length: 9.62m – Transport width: 2.53m – Transport height: 3.115m – Bucket capacity: 1m³ – Track width: 500mm and more.

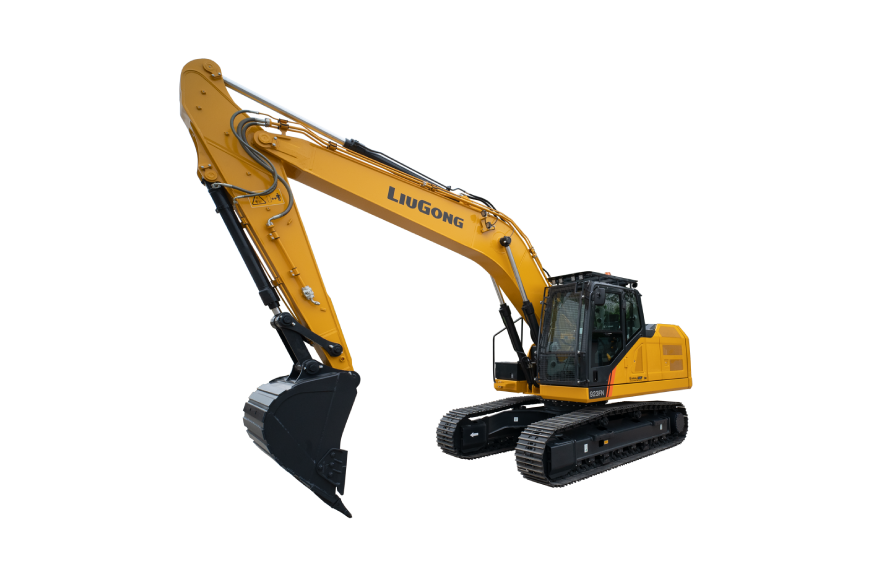

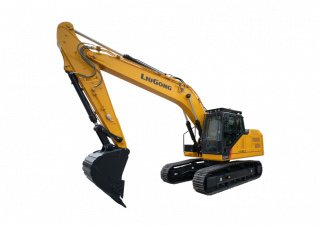

Crawler Excavators Liugong 923FN

Visit Liugong live at

Technical specs - 923FN Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9.62 m
Transport width
2.53 m
Transport height
3.115 m
Bucket capacity
1 m³
Track width
500 mm
Max. Reach horizontal
9.72 m
Dredging depth
6.76 m
Model series
F
Engine manuf.
Cummins
Engine type
QSB7
Engine power
124 kW
Displacement
6.7 l
Revolutions at max torque
1200 rpm
Max. torque
658 Nm
No. of cylinders
6
Emission level
CN 3 / Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
