920E Liugong excavator specs & Dimensions (2017 - 2026)

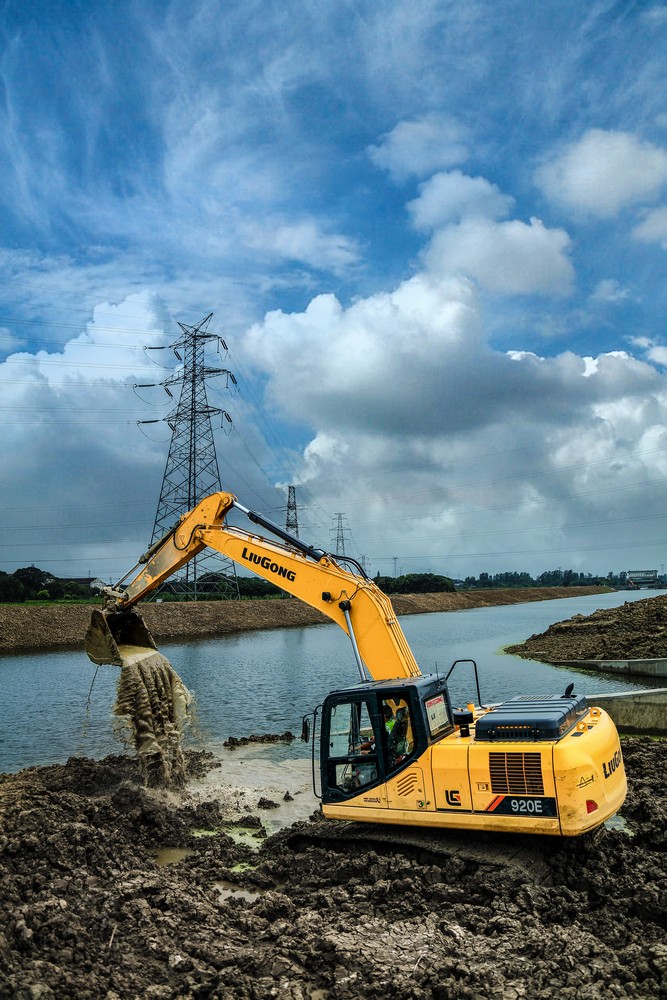

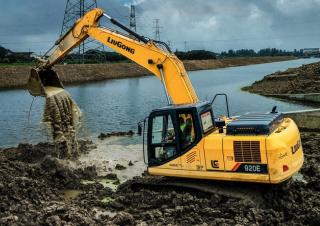

Liugong 920E is a Crawler Excavator manufactured since 2017, with a weight of 21.5 tons. It features a track width of 600 mm, a tr…

Liugong 920E is a Crawler Excavator manufactured since 2017, with a weight of 21.5 tons. It features a track width of 600 mm, a transport length of 9.57 meters, a transport width of 2.8 meters, and a transport height of 3.14 meters. The machine has a tear-out force of 140 kN, a dredging depth of 6.562 meters, and a maximum horizontal reach of 9.87 meters. The bucket width is 1.083 meters with a capacity of 0.9 cubic meters. It is equipped with air conditioning.

Crawler Excavators Liugong 920E

Visit Liugong live at

Technical specs - 920E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.5 t
Transport length
9.57 m
Transport width
2.8 m
Transport height
3.14 m
Bucket capacity
0.9 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.87 m
Dredging depth
6.562 m
Tear-out force
140 kN
Bucket width
1.083 m
Model series
E
Engine manuf.
Cummins
Engine type
B5.9
Engine power
102 kW
Displacement
5.9 l
Revolutions at max torque
1950 rpm
Max. torque
614/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm
Emission level
Tier 2/EU II

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 920E FAQ

When was the Liugong 920E manufactured?

The Liugong 920E was first produced in 2017.

How much does the Liugong 920E weigh?

The Liugong 920E weighs 21.5 tons.

What are the transport dimensions of the Liugong 920E crawler excavator?

The Liugong 920E has a transport length of 9.57 meters, a transport width of 2.8 meters, and a transport height of 3.14 meters.

What is the track width of the Liugong 920E's undercarriage?

The Liugong 920E has a track width of 600 mm.

What are the excavation performance specifications of the Liugong 920E crawler excavator?

The Liugong 920E crawler excavator has a dredging depth of 6.562 meters, a maximum horizontal reach of 9.87 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liugong 920E?

The Liugong 920E has a tear-out force of 140 kN.

What are the specifications of the primary work tool bucket on the Liugong 920E?

The Liugong 920E has a bucket with a capacity of 0.9 cubic meters and a width of 1.083 meters.

How much is a Liugong 920E Crawler excavator (2017u20132025) worth?

The residual value of the Liugong 920E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
