SC270.8LC Lishide excavator specs & Dimensions (2017 - 2023)

Lishide SC270.8LC is a Crawler Excavator manufactured since 2017, with a weight of 27.73 tons. It features a track width of 700 mm…

Lishide SC270.8LC is a Crawler Excavator manufactured since 2017, with a weight of 27.73 tons. It features a track width of 700 mm, a transport length of 9.95 meters, a transport width of 3.28 meters, and a transport height of 3.16 meters. The excavator has a tear-out force of 151 kN, a dredging depth of 6.81 meters, and a maximum horizontal reach of 10.17 meters. It is equipped with a bucket capacity of 1.3 cubic meters and includes special equipment such as air conditioning and cabin adjustment.

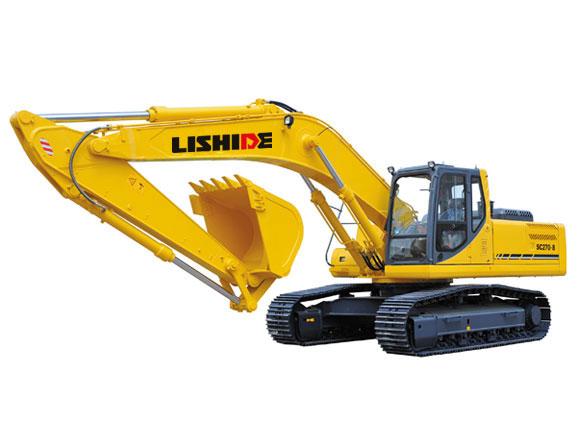

Crawler Excavators Lishide SC270.8LC
Crawler Excavators Lishide SC270.8LC
Crawler Excavators Lishide SC270.8LC
Crawler Excavators Lishide SC270.8LC

Technical specs - SC270.8LC Lishide

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.73 t
Transport length
9.95 m
Transport width
3.28 m
Transport height
3.16 m
Bucket capacity
1.3 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.17 m
Dredging depth
6.81 m
Tear-out force
151 kN
Model series
Middle
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
133 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Lishide SC270.8LC FAQ

When was the Lishide SC270.8LC manufactured?

The Lishide SC270.8LC was manufactured from 2017 to 2023.

How much does the Lishide SC270.8LC weigh?

The Lishide SC270.8LC weighs 27.73 tons.

What are the transport dimensions of the Lishide SC270.8LC crawler excavator?

The Lishide SC270.8LC has a transport length of 9.95 meters, a transport width of 3.28 meters, and a transport height of 3.16 meters.

What is the track width of the Lishide SC270.8LC crawler excavator?

The Lishide SC270.8LC crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Lishide SC270.8LC?

The Lishide SC270.8LC has a dredging depth of 6.81 meters, a maximum horizontal reach of 10.17 meters, and features a monobloc boom.

Are there any power rating specifications available for the Lishide SC270.8LC?

No power rating specifications are available for the Lishide SC270.8LC in the provided data.

What is the bucket capacity of the Lishide SC270.8LC crawler excavator?

The Lishide SC270.8LC crawler excavator has a bucket capacity of 1.3 cubic meters.

How much is a Lishide SC270.8LC Crawler excavator (2017u20132023) worth?

The residual value of the Lishide SC270.8LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
