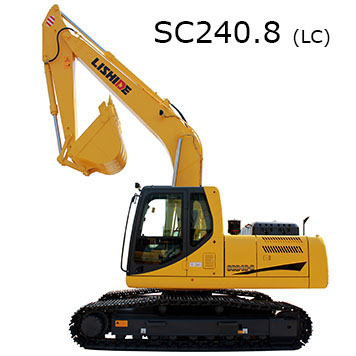

SC240.8 Lishide excavator specs & Dimensions (2017 - 2025)

Lishide SC240.8 is a Crawler Excavator manufactured since 2017, with a weight of 23.87 tons. It features a track width of 700 mm, …

Lishide SC240.8 is a Crawler Excavator manufactured since 2017, with a weight of 23.87 tons. It features a track width of 700 mm, a transport length of 9.89 meters, a transport width of 3.28 meters, and a transport height of 3.12 meters. The excavator has a tear-out force of 151 kN, a dredging depth of 6.875 meters, and a maximum horizontal reach of 10.15 meters. It is equipped with a bucket capacity of 1.2 cubic meters and includes special equipment such as air conditioning and cabin adjustment.

Crawler Excavators Lishide SC240.8
Crawler Excavators Lishide SC240.8
Crawler Excavators Lishide SC240.8
Crawler Excavators Lishide SC240.8

Technical specs - SC240.8 Lishide

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.87 t
Transport length
9.89 m
Transport width
3.28 m
Transport height
3.12 m
Bucket capacity
1.2 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.15 m
Dredging depth
6.875 m
Tear-out force
151 kN
Model series
Middle
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
133 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Lishide SC240.8 FAQ

When was the Lishide SC240.8 manufactured?

The Lishide SC240.8 was first produced in 2017.

How much does the Lishide SC240.8 weigh?

The Lishide SC240.8 weighs 23.87 tons.

What are the transport dimensions of the Lishide SC240.8 crawler excavator?

The Lishide SC240.8 has a transport length of 9.89 meters, a transport width of 3.28 meters, and a transport height of 3.12 meters.

What is the track width of the Lishide SC240.8 crawler excavator?

The Lishide SC240.8 crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Lishide SC240.8 crawler excavator?

The Lishide SC240.8 has a dredging depth of 6.875 meters, a maximum horizontal reach of 10.15 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Lishide SC240.8?

The Lishide SC240.8 has a tear-out force of 151 kN.

What is the bucket capacity of the Lishide SC240.8 excavator?

The Lishide SC240.8 excavator has a bucket capacity of 1.2 cubic meters.

How much is a Lishide SC240.8 Crawler excavator (2017u20132025) worth?

The residual value of the Lishide SC240.8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
