SC210.8 Lishide excavator specs & Dimensions (2017 - 2023)

Lishide SC210.8 is a Crawler Excavator manufactured since 2017, with a weight of 21.16 tons. It features a track width of 700 mm, …

Lishide SC210.8 is a Crawler Excavator manufactured since 2017, with a weight of 21.16 tons. It features a track width of 700 mm, a transport length of 9.54 meters, a transport width of 2.88 meters, and a transport height of 3.12 meters. The excavator has a tear-out force of 138 kN, a dredging depth of 6.515 meters, and a maximum horizontal reach of 9.865 meters. It is equipped with a bucket capacity of 0.93 cubic meters and includes special equipment such as air conditioning and cabin adjustment.

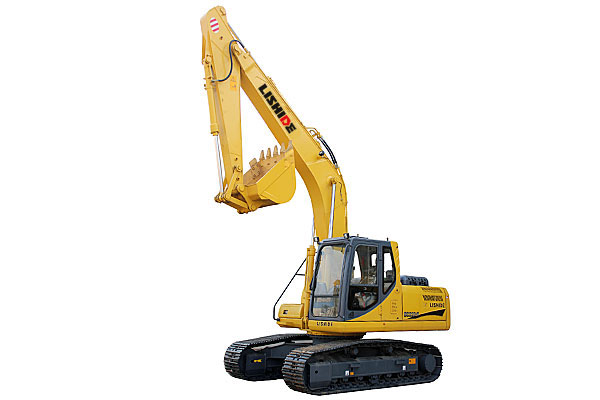

Crawler Excavators Lishide SC210.8
Crawler Excavators Lishide SC210.8
Crawler Excavators Lishide SC210.8
Crawler Excavators Lishide SC210.8

Technical specs - SC210.8 Lishide

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.16 t
Transport length
9.54 m
Transport width
2.88 m
Transport height
3.12 m
Bucket capacity
0.93 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
9.865 m
Dredging depth
6.515 m
Tear-out force
138 kN
Model series
Middle
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
112 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Lishide SC210.8 FAQ

When was the Lishide SC210.8 manufactured?

The Lishide SC210.8 was manufactured from 2017 to 2023.

How much does the Lishide SC210.8 weigh?

The Lishide SC210.8 weighs 21.16 tons.

What are the transport dimensions of the Lishide SC210.8 crawler excavator?

The Lishide SC210.8 has a transport length of 9.54 meters, a transport width of 2.88 meters, and a transport height of 3.12 meters.

What is the track width of the Lishide SC210.8's undercarriage?

The Lishide SC210.8 has a track width of 700 mm.

What is the excavation performance of the Lishide SC210.8 crawler excavator?

The Lishide SC210.8 crawler excavator has a dredging depth of 6.515 meters, a maximum horizontal reach of 9.865 meters, and is equipped with a Monobloc boom.

What power ratings are available for the Lishide SC210.8?

The source data does not provide power ratings for the Lishide SC210.8. However, it has a tear-out force of 138 kN.

What is the bucket capacity of the Lishide SC210.8 crawler excavator?

The bucket capacity of the Lishide SC210.8 is 0.93 cubic meters.
