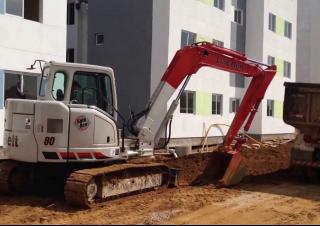

80 Spin Ace Link-Belt excavator specs & Dimensions (2017 - 2023)

Link-Belt 80 Spin Ace is a crawler excavator manufactured since 2017. It has a weight of 13.5 tons and a track width of 450 mm. Th…

Link-Belt 80 Spin Ace is a crawler excavator manufactured since 2017. It has a weight of 13.5 tons and a track width of 450 mm. The transport dimensions are 6.65 meters in length, 2.32 meters in width, and 2.7 meters in height. The dredging depth is 4.18 meters, and the maximum horizontal reach is 7.03 meters.

Crawler Excavators Link-Belt 80 Spin Ace

Technical specs - 80 Spin Ace Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Transport length
6.65 m
Transport width
2.32 m
Transport height
2.7 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.03 m
Dredging depth
4.18 m
Model series
Spin Ace
Engine manuf.
Isuzu
Engine type
AU-4LE2X
Engine power
40 kW
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, tear-out force, bucket width, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 80 Spin Ace FAQ

When was the Link-Belt 80 Spin Ace manufactured?

The Link-Belt 80 Spin Ace was manufactured from 2017 to 2023.

How much does the Link-Belt 80 Spin Ace weigh?

The Link-Belt 80 Spin Ace weighs 13.5 tons.

What are the transport dimensions of the Link-Belt 80 Spin Ace crawler excavator?

The Link-Belt 80 Spin Ace has a transport length of 6.65 meters, a transport width of 2.32 meters, and a transport height of 2.7 meters.

What is the track width of the Link-Belt 80 Spin Ace's undercarriage?

The Link-Belt 80 Spin Ace has a track width of 450 mm.

What are the excavation performance specifications of the Link-Belt 80 Spin Ace?

The Link-Belt 80 Spin Ace has a dredging depth of 4.18 meters, a maximum horizontal reach of 7.03 meters, and features a monobloc boom.

How much is a Link-Belt 80 Spin Ace Crawler excavator (2017u20132023) worth?

The residual value of the Link-Belt 80 Spin Ace depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
