75 Spin Ace Link-Belt excavator specs & Dimensions (2002 - 2023)

Link-Belt 75 Spin Ace is a crawler excavator manufactured since 2002, with a weight of 7 tons. It features a track width of 450 mm…

Link-Belt 75 Spin Ace is a crawler excavator manufactured since 2002, with a weight of 7 tons. It features a track width of 450 mm, a transport length of 5 meters, a transport width of 2 meters, and a transport height of 2 meters. The bucket width is 1.067 meters. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, and track adjustment.

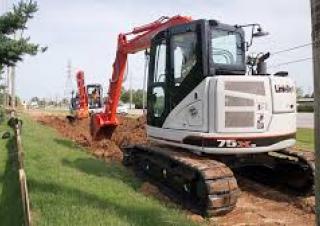

Crawler Excavators Link-Belt 75 Spin Ace

Technical specs - 75 Spin Ace Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
5 m
Transport width
2 m
Transport height
2 m
Undercarriage
LC
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.9 m
Dredging depth
4.54 m
Tear-out force
56.88 kN
Bucket width
1.067 m
Engine manuf.
Isuzu
Engine type
CC-4JG1
Engine power
39.1 kW
Displacement
3.059 l
Revolutions at max torque
1800 rpm
Max. torque
184 Nm
No. of cylinders
4
Cylinder bore x stroke
95 x 107 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 75 Spin Ace FAQ

When was the Link-Belt 75 Spin Ace manufactured?

The Link-Belt 75 Spin Ace was manufactured from 2002 to 2023.

How much does the Link-Belt 75 Spin Ace weigh?

The Link-Belt 75 Spin Ace weighs 7 tons.

What are the transport dimensions of the Link-Belt 75 Spin Ace?

The Link-Belt 75 Spin Ace has a transport length of 5 meters, a transport width of 2 meters, and a transport height of 2 meters.

What are the undercarriage specifications of the Link-Belt 75 Spin Ace?

The Link-Belt 75 Spin Ace has a long undercarriage and a track width of 450 mm.

What are the excavation performance specifications of the Link-Belt 75 Spin Ace?

The Link-Belt 75 Spin Ace has a dredging depth of 4.54 meters, a maximum horizontal reach of 6.9 meters, and is equipped with a monobloc boom.

What are the power ratings of the Link-Belt 75 Spin Ace?

The available data does not provide power ratings for the Link-Belt 75 Spin Ace.

What is the bucket width of the Link-Belt 75 Spin Ace excavator?

The bucket width of the Link-Belt 75 Spin Ace excavator is 1.067 meters.
