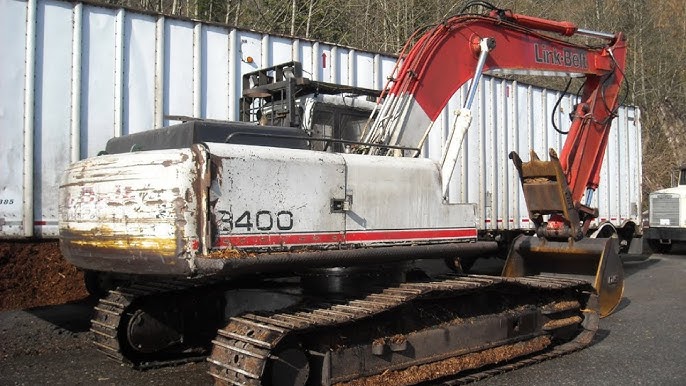

3400 Long Front Link-Belt excavator specs & Dimensions (1999 - 2023)

Link-Belt 3400 Long Front is a crawler excavator manufactured since 1999, with a weight of 27 tons. It features a track width of 8…

Link-Belt 3400 Long Front is a crawler excavator manufactured since 1999, with a weight of 27 tons. It features a track width of 800 mm, a transport length of 14 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.524 meters. This model includes special equipment such as a diesel particulate filter and track adjustment.

Crawler Excavators Link-Belt 3400 Long Front

Technical specs - 3400 Long Front Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27 t
Transport length
14 m
Transport width
3 m
Transport height
3 m
Track width
800 mm
Boom
UA
Max. Reach horizontal
18.37 m
Dredging depth
14.5 m
Bucket width
1.524 m
Engine manuf.
Isuzu
Engine type
6BG1T
Engine power
114 kW
Displacement
6.494 l
Revolutions at max torque
1700 rpm
Max. torque
526 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, tear-out force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3400 Long Front FAQ

When was the Link-Belt 3400 Long Front manufactured?

The Link-Belt 3400 Long Front was manufactured from 1999 to 2023.

How much does the Link-Belt 3400 Long Front weigh?

The Link-Belt 3400 Long Front weighs 27 tons.

What are the transport dimensions of the Link-Belt 3400 Long Front?

The Link-Belt 3400 Long Front has a transport length of 14 meters, a transport width of 3 meters, and a transport height of 3 meters.

What is the track width of the undercarriage on the Link-Belt 3400 Long Front?

The Link-Belt 3400 Long Front has a track width of 800 mm on its undercarriage.

What are the excavation performance specifications of the Link-Belt 3400 Long Front?

The Link-Belt 3400 Long Front has a dredging depth of 14.5 meters, a maximum horizontal reach of 18.37 meters, and is equipped with a material handling boom.

What is the bucket width of the Link-Belt 3400 Long Front excavator?

The bucket width of the Link-Belt 3400 Long Front excavator is 1.524 meters.

How much is a Link-Belt 3400 Long Front Crawler excavator (1999u20132023) worth?

The residual value of the Link-Belt 3400 Long Front depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
