250 X3 Link-Belt excavator specs & Dimensions (2012 - 2023)

Link-Belt 250 X3 is a crawler excavator manufactured since 2012, with a weight of 25 tons. It features a track width of 800 mm, a …

Link-Belt 250 X3 is a crawler excavator manufactured since 2012, with a weight of 25 tons. It features a track width of 800 mm, a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters. The machine has a tear-out force of 174 kN, a bucket width of 1.829 meters, and a maximum bucket capacity of 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

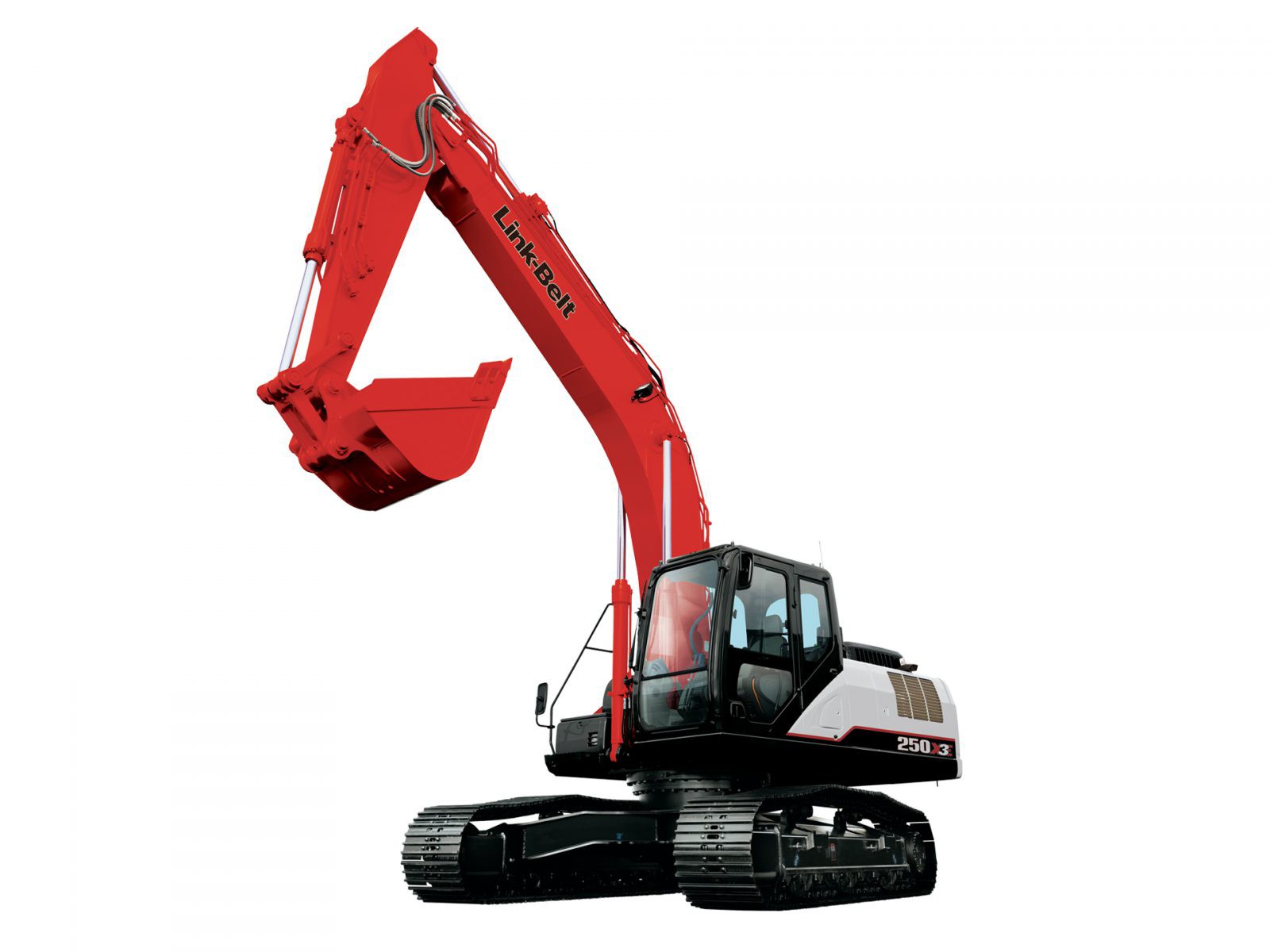

Crawler Excavators Link-Belt 250 X3

Technical specs - 250 X3 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25 t
Transport length
9 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
10.72 m
Dredging depth
7.42 m
Tear-out force
174 kN
Bucket width
1.829 m
Engine manuf.
Isuzu
Engine type
AL-4HK1X
Engine power
132 kW
Displacement
5.2 l
Revolutions at max torque
1800 rpm
Max. torque
621 Nm
No. of cylinders
4
Emission level
Tier 4A

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 250 X3 FAQ

When was the Link-Belt 250 X3 manufactured?

The Link-Belt 250 X3 was manufactured from 2012 to 2023.

How much does the Link-Belt 250 X3 weigh?

The Link-Belt 250 X3 weighs 25 tons.

What are the transport dimensions of the Link-Belt 250 X3 crawler excavator?

The Link-Belt 250 X3 has a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 250 X3?

The Link-Belt 250 X3 has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 250 X3?

The Link-Belt 250 X3 has a dredging depth of 7.42 meters, a maximum horizontal reach of 10.72 meters, and features a monobloc boom.

What is the tear-out force of the Link-Belt 250 X3?

The Link-Belt 250 X3 has a tear-out force of 174 kN.

What are the bucket specifications of the Link-Belt 250 X3 excavator?

The Link-Belt 250 X3 excavator has a bucket with a maximum capacity of 1 cubic meter and a width of 1.829 meters.

How much is a Link-Belt 250 X3 Crawler excavator (2012u20132023) worth?

The residual value of the Link-Belt 250 X3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
