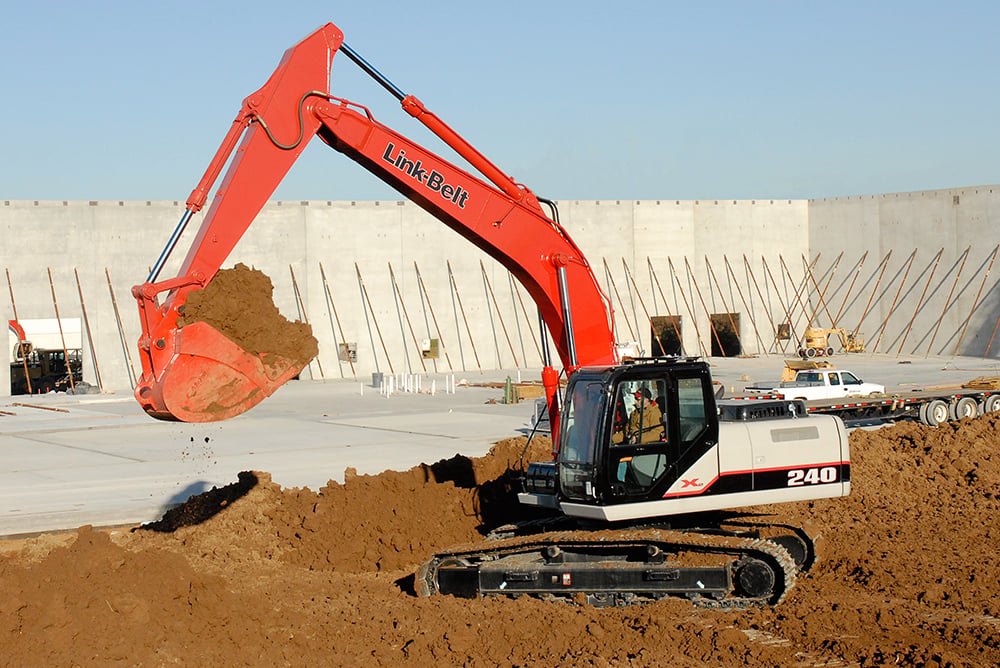

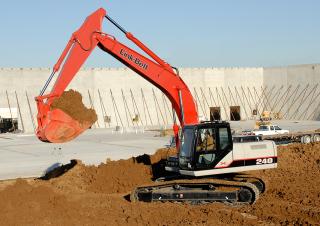

240 LX Link-Belt excavator specs & Dimensions (2004 - 2007)

Link-Belt 240 LX is a crawler excavator manufactured from 2004 to 2007. It has a weight of 23 tons and features a track width of 8…

Link-Belt 240 LX is a crawler excavator manufactured from 2004 to 2007. It has a weight of 23 tons and features a track width of 800 mm. The transport dimensions are 9 meters in length, 3 meters in width, and 3 meters in height. The bucket width is 1.676 meters with a maximum bucket capacity of 1 cubic meter. Special equipment includes air conditioning, a blade, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 240 LX

Technical specs - 240 LX Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
10.84 m
Dredging depth
7.39 m
Tear-out force
172.99 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
121 kW
Displacement
6494 l
Revolutions at max torque
1800 rpm
Max. torque
562 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 240 LX FAQ

When was the Link-Belt 240 LX manufactured?

The Link-Belt 240 LX was manufactured from 2004 to 2007.

How much does the Link-Belt 240 LX weigh?

The Link-Belt 240 LX weighs 23 tons.

What are the transport dimensions of the Link-Belt 240 LX crawler excavator?

The Link-Belt 240 LX has a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 240 LX?

The Link-Belt 240 LX has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 240 LX?

The Link-Belt 240 LX has a dredging depth of 7.39 meters, a maximum horizontal reach of 10.84 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 240 LX?

The Link-Belt 240 LX has a tear-out force of 172.99 kN.

What are the specifications of the primary work tool on the Link-Belt 240 LX?

The primary work tool of the Link-Belt 240 LX has a maximum bucket capacity of 1 cubic meter and a bucket width of 1.676 meters.

How much is a Link-Belt 240 LX Crawler excavator (2004u20132007) worth?

The residual value of the Link-Belt 240 LX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
