210 X4 Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 210 X4 is a Crawler Excavator manufactured since 2019, with a weight of 22.2 tons. It features a track width of 800 mm, …

Link-Belt 210 X4 is a Crawler Excavator manufactured since 2019, with a weight of 22.2 tons. It features a track width of 800 mm, a transport length of 9.43 meters, a transport width of 3.19 meters, and a transport height of 3.15 meters. The excavator has a tear-out force of 154 kN, a dredging depth of 6.65 meters, and a maximum horizontal reach of 9.73 meters. The bucket capacity ranges from a minimum of 0.47 m³ to a maximum of 1.34 m³.

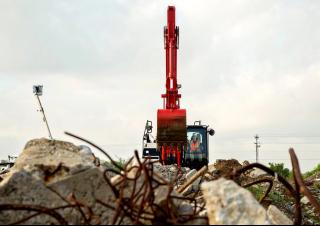

Crawler Excavators Link-Belt 210 X4

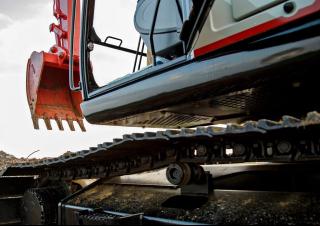

Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4
Crawler Excavators Link-Belt 210 X4

Technical specs - 210 X4 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.2 t
Transport length
9.43 m
Transport width
3.19 m
Transport height
3.15 m
Bucket capacity
1.34 m³
Bucket capacity min.
0.47 m³
Bucket capacity max.
1.34 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.73 m
Dredging depth
6.65 m
Tear-out force
154 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AR-4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 210 X4 FAQ

When was the Link-Belt 210 X4 manufactured?

The Link-Belt 210 X4 was first produced in 2019.

How much does the Link-Belt 210 X4 weigh?

The Link-Belt 210 X4 weighs 22.2 tons.

What are the transport dimensions of the Link-Belt 210 X4 crawler excavator?

The Link-Belt 210 X4 has a transport length of 9.43 meters, a transport width of 3.19 meters, and a transport height of 3.15 meters.

What are the undercarriage specifications of the Link-Belt 210 X4?

The Link-Belt 210 X4 has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 210 X4 crawler excavator?

The Link-Belt 210 X4 crawler excavator has a dredging depth of 6.65 meters, a maximum horizontal reach of 9.73 meters, and is equipped with a monobloc boom.

What are the power ratings of the Link-Belt 210 X4?

There are no power ratings available for the Link-Belt 210 X4 in the provided data.

What are the bucket capacity specifications of the Link-Belt 210 X4 excavator?

The Link-Belt 210 X4 excavator has a bucket capacity of 1.34 cubic meters, with a maximum capacity of 1.34 cubic meters and a minimum capacity of 0.47 cubic meters.

How much is a Link-Belt 210 X4 Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 210 X4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
