210 LX Road Builder Link-Belt excavator specs & Dimensions (2002 - 2023)

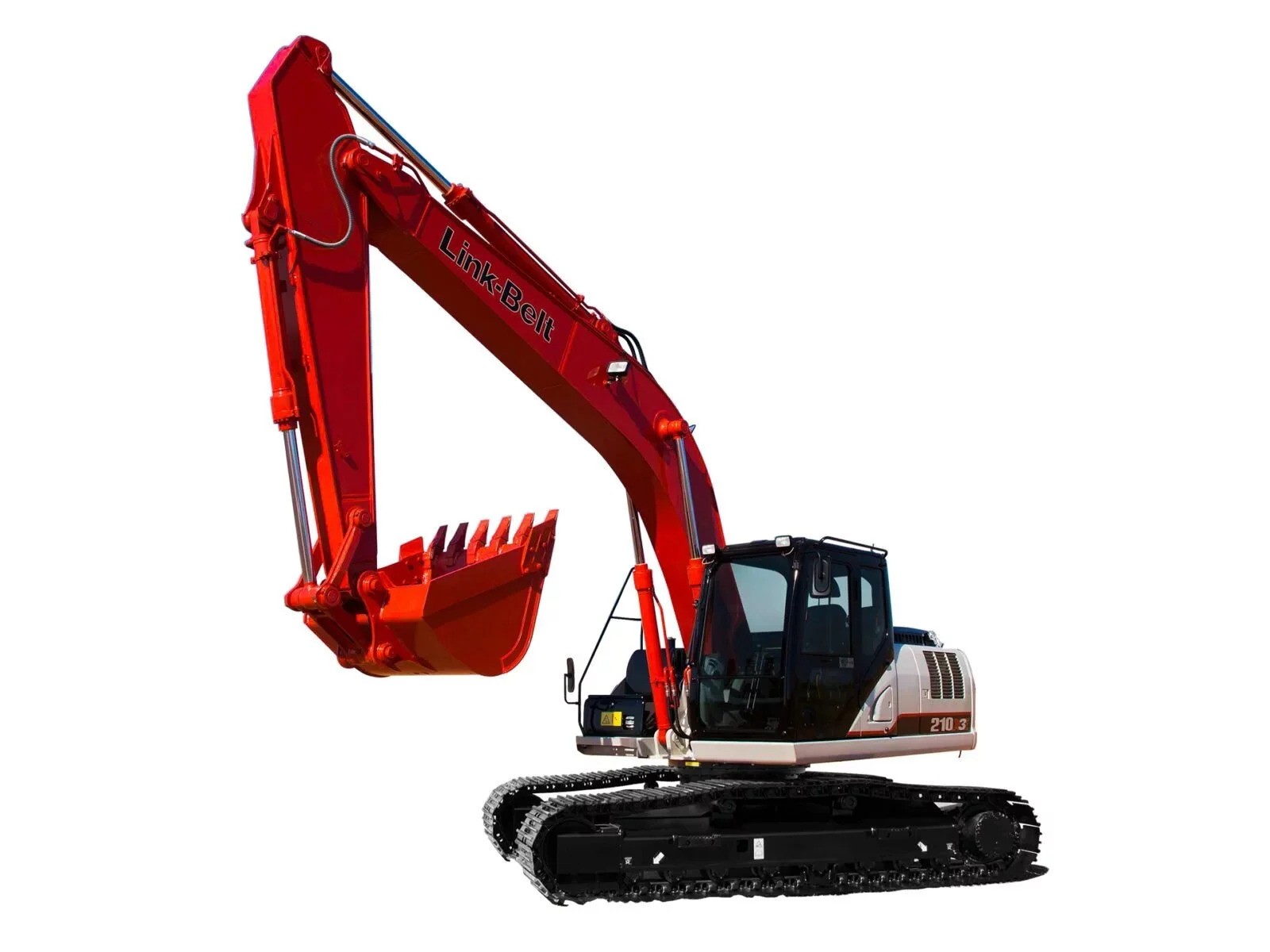

Link-Belt 210 LX Road Builder is a crawler excavator manufactured since 2002, with a weight of 26 tons. It features a track width …

Link-Belt 210 LX Road Builder is a crawler excavator manufactured since 2002, with a weight of 26 tons. It features a track width of 700 mm, a transport length of 9 meters, a transport width of 3.643 meters, and a transport height of 3.246 meters. The machine has a dredging depth of 6 meters and a maximum horizontal reach of 9 meters. It is equipped with air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 210 LX Road Builder

Technical specs - 210 LX Road Builder Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.65 t
Transport length
9.28 m
Transport width
3.64 m
Transport height
3.25 m
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
9.96 m
Dredging depth
6.48 m
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
103 kW
Displacement
6.494 l
Revolutions at max torque
1600 rpm
Max. torque
532 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 210 LX Road Builder FAQ

When was the Link-Belt 210 LX Road Builder manufactured?

The Link-Belt 210 LX Road Builder was manufactured from 2002 to 2023.

How much does the Link-Belt 210 LX Road Builder weigh?

The Link-Belt 210 LX Road Builder weighs 26.65 tons.

What are the transport dimensions of the Link-Belt 210 LX Road Builder?

The Link-Belt 210 LX Road Builder has a transport length of 9.28 meters, a transport width of 3.64 meters, and a transport height of 3.25 meters.

What are the undercarriage specifications of the Link-Belt 210 LX Road Builder?

The Link-Belt 210 LX Road Builder has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 210 LX Road Builder?

The Link-Belt 210 LX Road Builder has a dredging depth of 6.48 meters, a maximum horizontal reach of 9.96 meters, and features a monobloc boom.
