160 X4 Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 160 X4 is a Crawler Excavator manufactured since 2019. It has a weight of 17.4 tons and a track width of 600 mm. The tra…

Link-Belt 160 X4 is a Crawler Excavator manufactured since 2019. It has a weight of 17.4 tons and a track width of 600 mm. The transport dimensions are 8.46 meters in length, 2.59 meters in width, and 3.14 meters in height. The excavator features a tear-out force of 118 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 9.22 meters. The bucket capacity ranges from a minimum of 0.56 cubic meters to a maximum of 1.14 cubic meters, with a standard capacity of 0.87 cubic meters.

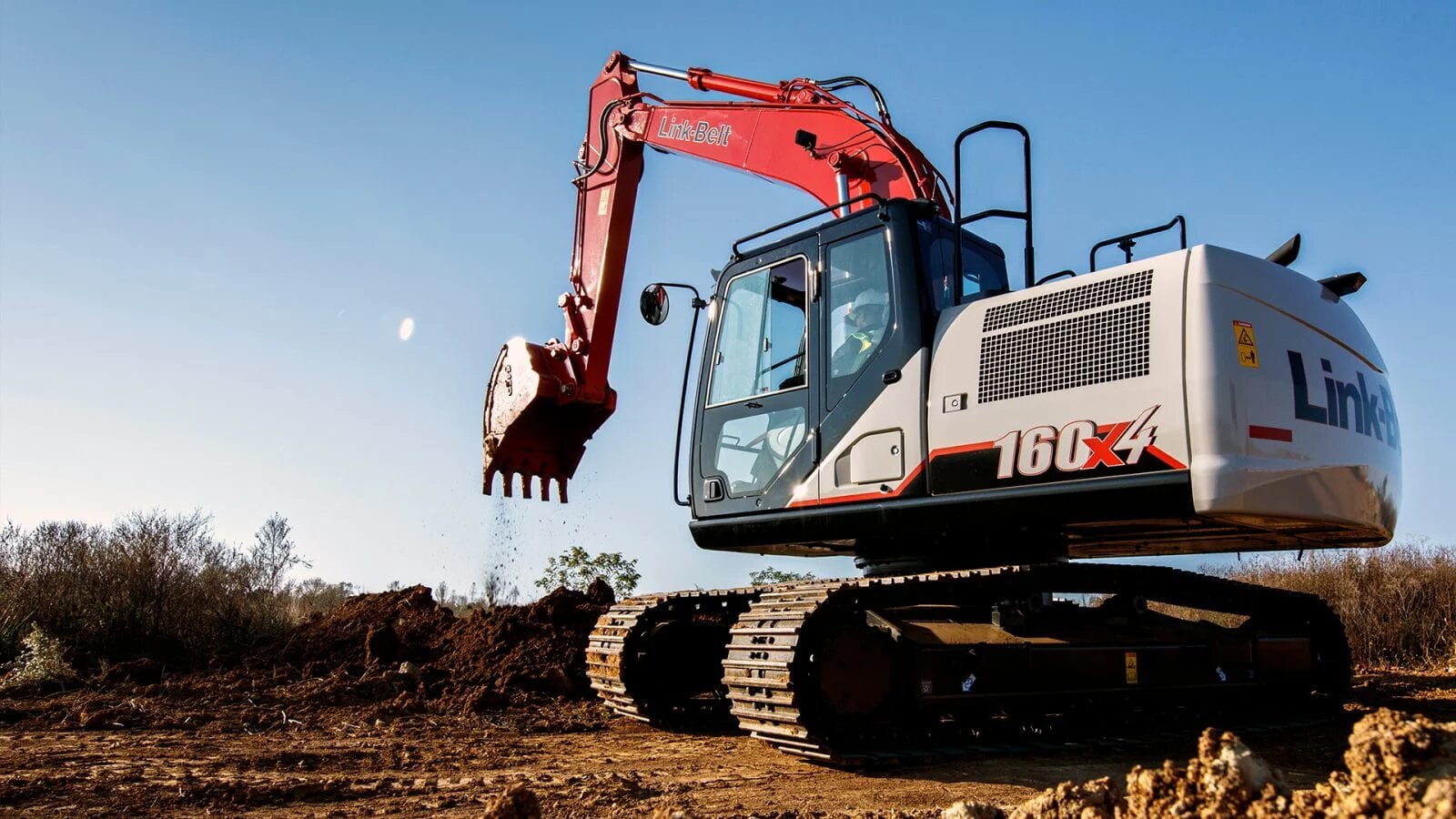

Crawler Excavators Link-Belt 160 X4
Crawler Excavators Link-Belt 160 X4
Crawler Excavators Link-Belt 160 X4
Crawler Excavators Link-Belt 160 X4
Crawler Excavators Link-Belt 160 X4
Crawler Excavators Link-Belt 160 X4

Technical specs - 160 X4 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.4 t
Transport length
8.46 m
Transport width
2.59 m
Transport height
3.14 m
Bucket capacity
0.87 m³
Bucket capacity min.
0.56 m³
Bucket capacity max.
1.14 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.22 m
Dredging depth
6.06 m
Tear-out force
118 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AR-4JJ1X
Engine power
83.2 kW
Displacement
2.9 l
Revolutions at max torque
1800 rpm
Max. torque
349 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 160 X4 FAQ

When was the Link-Belt 160 X4 manufactured?

The Link-Belt 160 X4 was first produced in 2019.

How much does the Link-Belt 160 X4 weigh?

The Link-Belt 160 X4 weighs 17.4 tons.

What are the transport dimensions of the Link-Belt 160 X4 crawler excavator?

The Link-Belt 160 X4 crawler excavator has a transport length of 8.46 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the Link-Belt 160 X4?

The Link-Belt 160 X4 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 160 X4?

The Link-Belt 160 X4 has a dredging depth of 6.06 meters, a maximum horizontal reach of 9.22 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 160 X4?

The Link-Belt 160 X4 has a tear-out force of 118 kN.

What are the bucket capacity specifications of the Link-Belt 160 X4 crawler excavator?

The Link-Belt 160 X4 crawler excavator has a bucket capacity of 0.87 cubic meters, with a maximum capacity of 1.14 cubic meters and a minimum capacity of 0.56 cubic meters.
