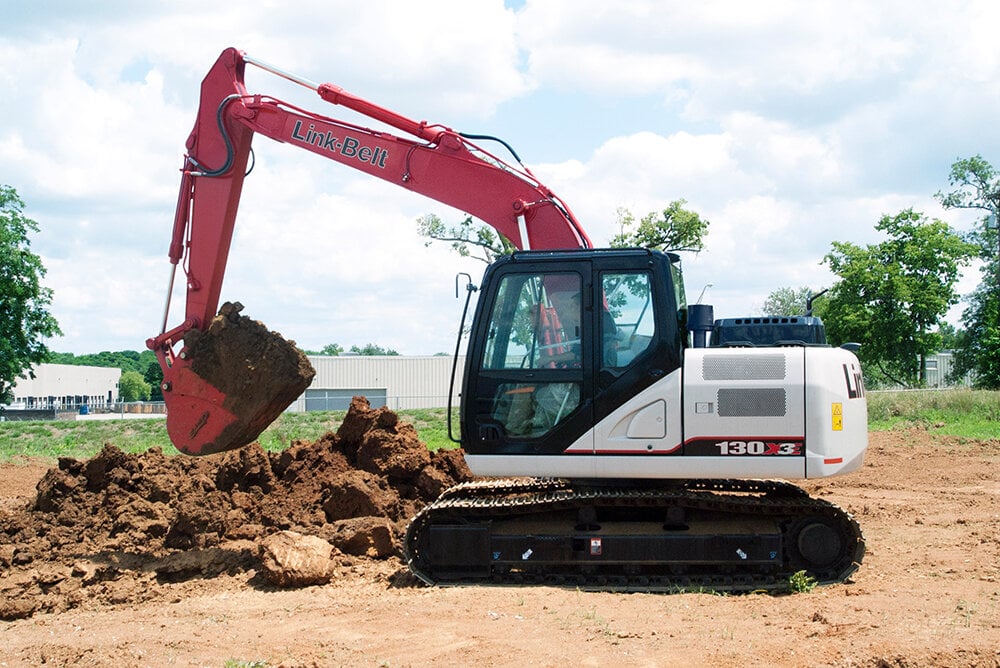

130 LX Link-Belt excavator specs & Dimensions (2004 - 2012)

Link-Belt 130 LX is a crawler excavator manufactured from 2004 to 2012, with a weight of 12 tons. It features a track width of 600…

Link-Belt 130 LX is a crawler excavator manufactured from 2004 to 2012, with a weight of 12 tons. It features a track width of 600 mm, a transport length of 7 meters, a transport width of 2 meters, and a transport height of 2 meters. The bucket width is 1.676 meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and track adjustment.

Crawler Excavators Link-Belt 130 LX

Technical specs - 130 LX Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12 t
Transport length
7 m
Transport width
2 m
Transport height
2 m
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.74 m
Dredging depth
6.1 m
Tear-out force
94.79 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
BB-4BG1T
Engine power
66 kW
Displacement
4.33 l
Revolutions at max torque
1600 rpm
Max. torque
324 Nm
No. of cylinders
4
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 130 LX FAQ

When was the Link-Belt 130 LX manufactured?

The Link-Belt 130 LX was manufactured from 2004 to 2012.

How much does the Link-Belt 130 LX weigh?

The Link-Belt 130 LX weighs 12 tons.

What are the transport dimensions of the Link-Belt 130 LX crawler excavator?

The Link-Belt 130 LX has a transport length of 7 meters, a transport width of 2 meters, and a transport height of 2 meters.

What are the undercarriage specifications of the Link-Belt 130 LX?

The Link-Belt 130 LX has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 130 LX crawler excavator?

The Link-Belt 130 LX crawler excavator has a dredging depth of 6.1 meters, a maximum horizontal reach of 8.74 meters, and features a monobloc boom.

What is the power rating of the Link-Belt 130 LX?

The source data does not provide power rating information for the Link-Belt 130 LX.

What is the bucket width of the Link-Belt 130 LX excavator?

The bucket width of the Link-Belt 130 LX excavator is 1.676 meters.

How much is a Link-Belt 130 LX Crawler excavator (2004u20132012) worth?

The residual value of the Link-Belt 130 LX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
