R 928 Litronic Liebherr excavator specs & Dimensions (2021 - 2026)

Liebherr R 928 Litronic is a crawler excavator manufactured since 2021. It has a weight of 28.95 tons and a track width of 600 mm.…

Liebherr R 928 Litronic is a crawler excavator manufactured since 2021. It has a weight of 28.95 tons and a track width of 600 mm. The transport dimensions are 10.1 meters in length, 3.49 meters in width, and 3.15 meters in height. The dredging depth is 6.59 meters, with a maximum horizontal reach of 9.72 meters. The bucket width is 1.7 meters, with a capacity ranging from 0.55 to 1.85 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

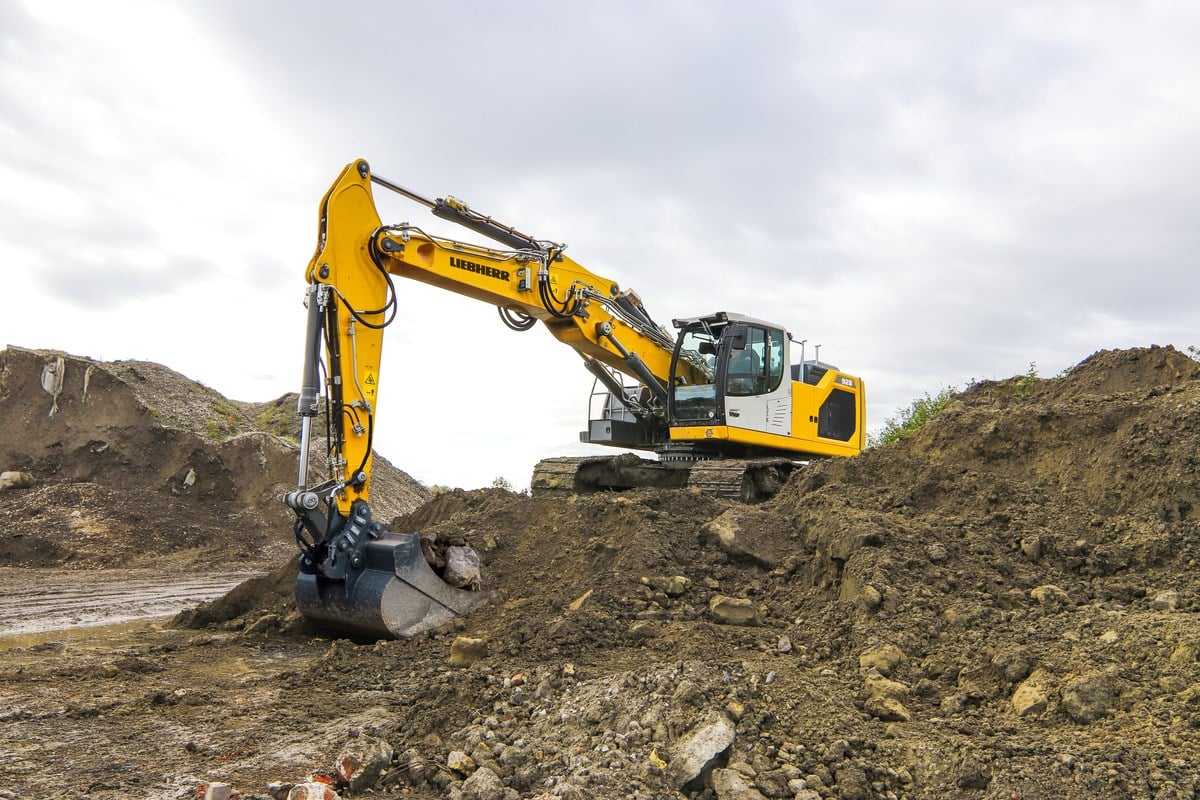

Crawler Excavators Liebherr R 928 Litronic
Crawler Excavators Liebherr R 928 Litronic
Crawler Excavators Liebherr R 928 Litronic
Crawler Excavators Liebherr R 928 Litronic

Visit Liebherr live at

Technical specs - R 928 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.95 t
Transport length
10.1 m
Transport width
3.49 m
Transport height
3.15 m
Bucket capacity
1.85 m³
Bucket capacity min.
0.55 m³
Bucket capacity max.
1.85 m³
Track width
600 mm
Max. Reach horizontal
9.72 m
Dredging depth
6.59 m
Bucket width
1.7 m
Model series
R
Engine manuf.
Liebherr
Engine type
D934 A7-25
Engine power
150 kW
Displacement
7 l
Revolutions at max torque
1100 rpm
Max. torque
1245 Nm
No. of cylinders
4
Emission level
Stage V

More technical details, like: undercarriage, boom, tear-out force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 928 Litronic FAQ

When was the Liebherr R 928 Litronic manufactured?

The Liebherr R 928 Litronic was first produced in 2021.

How much does the Liebherr R 928 Litronic weigh?

The Liebherr R 928 Litronic weighs 28.95 tons.

What are the transport dimensions of the Liebherr R 928 Litronic?

The Liebherr R 928 Litronic has a transport length of 10.1 meters, a transport width of 3.49 meters, and a transport height of 3.15 meters.

What is the track width of the Liebherr R 928 Litronic's undercarriage?

The Liebherr R 928 Litronic has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Liebherr R 928 Litronic?

The Liebherr R 928 Litronic has a dredging depth of 6.59 meters and a maximum horizontal reach of 9.72 meters.

What are the bucket specifications of the Liebherr R 928 Litronic excavator?

The Liebherr R 928 Litronic excavator has a bucket capacity ranging from 0.55 to 1.85 cubic meters, with a bucket width of 1.7 meters.

How much is a Liebherr R 928 Litronic Crawler excavator (2021u20132025) worth?

The residual value of the Liebherr R 928 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr R 928 Litronic overview

Engine

Maintenance

Innovative servicing concept, with service points accessible from ground level. Engine oil, hydraulic oil, fuel and urea (diesel exhaust fluid) levels visible on the display. New concept for lateral access to uppercarriage and large maintenance platform.


Engine

New engine that conforms with the Stage V European exhaust emissions standard. Automatic engine speed increase/decrease controlled by proximity sensors in the joysticks.


Undercarriage

Undercarriage

Robust, reliable X-frame undercarriage, easy to secure thanks to its integrated eyelets. Easy maintenance. Maintenance-free track chains and track rollers with lifetime lubrication. Extra storage (option).


Cab

Safety

Panoramic visibility with no obstructions and camera on the rear and the right side for enhanced safety. Tiltable console for easy and safe access to cab. ROPS-certified cab structure. Emergency exit via the rear cab window. Right window and windshield in laminated and tinted glass.


Comfort

Spacious, air-conditioned work space. Airsprung seat with vertical and longitudinal suspension. Easy-to-use high resolution 7” colour touchscreen. Completely retractable front cab window. New LED lighting as standard.


Equipment

Equipment

Large choice of types and lengths of equipment. Safety check valves for hoist and stick cylinders (option). Longer lifespan of components and higher productivity thanks to automatic centralised lubrication system.
