R 926 Compact Liebherr excavator specs & Dimensions (2014 - 2019)

Model rating
8,00 / 10

Liebherr R 926 Compact is a crawler excavator manufactured from 2014 to 2019. It has a weight of 25.3 tons and a track width of 60…

Liebherr R 926 Compact is a crawler excavator manufactured from 2014 to 2019. It has a weight of 25.3 tons and a track width of 600 mm. The transport dimensions are 9.4 meters in length, 2.38 meters in width, and 3.15 meters in height. The machine features a tear-out force of 103 kN, a bucket width of 1.05 meters, and a bucket capacity of 0.8 cubic meters. It is equipped with air conditioning as special equipment.

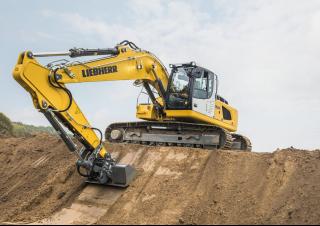

Crawler Excavators Liebherr R 926 Compact

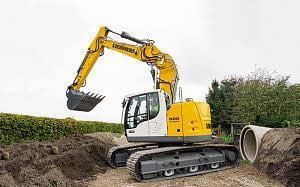

Crawler Excavators Liebherr R 926 Compact

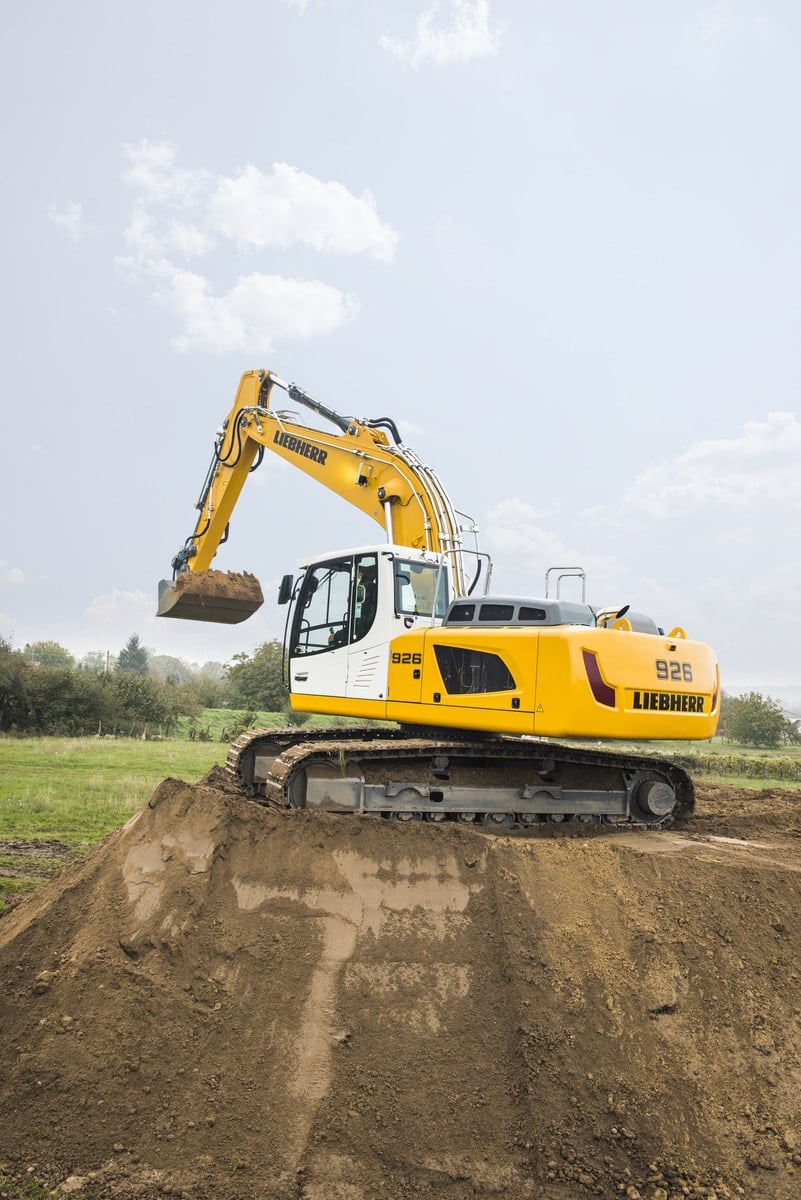

Crawler Excavators Liebherr R 926 Compact

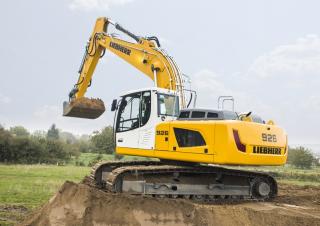

Crawler Excavators Liebherr R 926 Compact
Crawler Excavators Liebherr R 926 Compact
Crawler Excavators Liebherr R 926 Compact

Visit Liebherr live at

Technical specs - R 926 Compact Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.3 t
Transport length
9.4 m
Transport width
2.38 m
Transport height
3.15 m
Bucket capacity
0.8 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.85 m
Tear-out force
103 kN
Bucket width
1.05 m
Model series
R
Engine manuf.
Liebherr
Engine type
D 834 A 7
Engine power
120 kW
Displacement
4.58 l
Revolutions at max torque
1400 rpm
Max. torque
682 Nm
No. of cylinders
4
Cylinder bore x stroke
108x125 mm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 926 Compact FAQ

When was the Liebherr R 926 Compact manufactured?

The Liebherr R 926 Compact was manufactured from 2014 to 2019.

How much does the Liebherr R 926 Compact weigh?

The Liebherr R 926 Compact weighs 25.3 tons.

What are the transport dimensions of the Liebherr R 926 Compact crawler excavator?

The Liebherr R 926 Compact has a transport length of 9.4 meters, a transport width of 2.38 meters, and a transport height of 3.15 meters.

What is the fuel consumption range of the Liebherr R 926 Compact crawler excavator?

The Liebherr R 926 Compact crawler excavator has a fuel consumption range of 8 to 14 liters per hour.

What are the undercarriage specifications of the Liebherr R 926 Compact?

The Liebherr R 926 Compact has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 926 Compact?

The Liebherr R 926 Compact has a dredging depth of 6.85 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What power rating information is available for the Liebherr R 926 Compact?

The source data for the Liebherr R 926 Compact does not provide power ratings but specifies a tear-out force of 103 kN.

What are the specifications of the bucket on the Liebherr R 926 Compact?

The bucket of the Liebherr R 926 Compact has a capacity of 0.8 cubic meters and a width of 1.05 meters.

How much is a Liebherr R 926 Compact Crawler excavator (2014u20132019) worth?

The residual value of the Liebherr R 926 Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
