R 926 Classic Liebherr excavator specs & Dimensions (2008 - 2012)

Liebherr R 926 Classic is a crawler excavator manufactured from 2008 to 2012. It has a weight of 26.3 tons and a track width of 60…

Liebherr R 926 Classic is a crawler excavator manufactured from 2008 to 2012. It has a weight of 26.3 tons and a track width of 600 mm. The transport dimensions are 9.85 meters in length, 2.98 meters in width, and 3.057 meters in height. The machine features a tear-out force of 134 kN and a maximum horizontal reach of 10 meters. Special equipment includes air conditioning and an overload alert system.

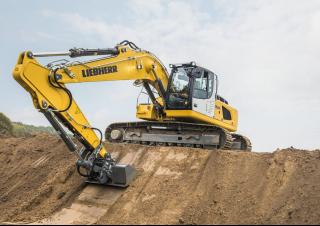

Crawler Excavators Liebherr R 926 Classic
Crawler Excavators Liebherr R 926 Classic
Crawler Excavators Liebherr R 926 Classic
Crawler Excavators Liebherr R 926 Classic

Visit Liebherr live at

Technical specs - R 926 Classic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.3 t
Transport length
9.85 m
Transport width
2.98 m
Transport height
3.057 m
Bucket capacity
0.95 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10 m
Dredging depth
6.75 m
Tear-out force
134 kN
Bucket width
1.05 m
Model series
R
Engine manuf.
Liebherr
Engine type
D934 S
Engine power
130 kW
Displacement
6.36 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 926 Classic FAQ

When was the Liebherr R 926 Classic manufactured?

The Liebherr R 926 Classic was manufactured from 2008 to 2012.

How much does the Liebherr R 926 Classic weigh?

The Liebherr R 926 Classic weighs 26.3 tons.

What are the transport dimensions of the Liebherr R 926 Classic crawler excavator?

The Liebherr R 926 Classic has a transport length of 9.85 meters, a transport width of 2.98 meters, and a transport height of 3.06 meters.

What is the fuel consumption range of the Liebherr R 926 Classic crawler excavator?

The fuel consumption range of the Liebherr R 926 Classic crawler excavator is between 10 and 18 liters per hour.

What are the undercarriage specifications of the Liebherr R 926 Classic?

The Liebherr R 926 Classic has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 926 Classic?

The Liebherr R 926 Classic has a dredging depth of 6.75 meters, a maximum horizontal reach of 10 meters, and is equipped with a monobloc boom.

What power rating information is available for the Liebherr R 926 Classic?

There is no power rating information available for the Liebherr R 926 Classic in the provided data.

What are the specifications of the primary work tool bucket on the Liebherr R 926 Classic?

The primary work tool bucket of the Liebherr R 926 Classic has a capacity of 0.95 cubic meters and a width of 1.05 meters.

How much is a Liebherr R 926 Classic Crawler excavator (2008u20132012) worth?

The residual value of the Liebherr R 926 Classic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
