R 926 Liebherr excavator specs & Dimensions (2016 - 2019)

Liebherr R 926 is a crawler excavator manufactured from 2016 to 2019. It has a weight of 26.3 tons and a track width of 600 mm. Th…

Liebherr R 926 is a crawler excavator manufactured from 2016 to 2019. It has a weight of 26.3 tons and a track width of 600 mm. The transport dimensions are 10.05 meters in length, 2 meters in width, and 3.08 meters in height. The machine features a tear-out force of 139 kN and a maximum horizontal reach of 10 meters. The bucket width is 1.05 meters, with a bucket capacity of 0.95 cubic meters.

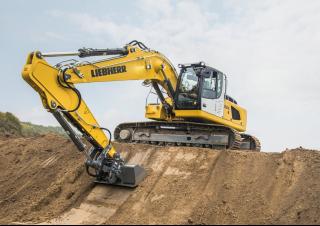

Crawler Excavators Liebherr R 926
Crawler Excavators Liebherr R 926
Crawler Excavators Liebherr R 926
Crawler Excavators Liebherr R 926

Visit Liebherr live at

Technical specs - R 926 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.3 t
Transport length
10.05 m
Transport width
2 m
Transport height
3.08 m
Bucket capacity
0.95 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10 m
Dredging depth
6.75 m
Tear-out force
139 kN
Bucket width
1.05 m
Model series
R
Engine manuf.
Liebherr
Engine type
D934 A7
Engine power
140 kW
Displacement
7 l
Revolutions at max torque
1100 rpm
Max. torque
815 Nm
No. of cylinders
4
Cylinder bore x stroke
122x150 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 926 FAQ

When was the Liebherr R 926 manufactured?

The Liebherr R 926 was manufactured from 2016 to 2019.

How much does the Liebherr R 926 weigh?

The Liebherr R 926 weighs 26.3 tons.

What are the transport dimensions of the Liebherr R 926 crawler excavator?

The Liebherr R 926 crawler excavator has a transport length of 10.05 meters, a transport width of 2 meters, and a transport height of 3.08 meters.

What is the fuel consumption range of the Liebherr R 926 crawler excavator?

The Liebherr R 926 crawler excavator has a fuel consumption range of 10 to 18 liters per hour.

What are the undercarriage specifications of the Liebherr R 926?

The Liebherr R 926 has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 926?

The Liebherr R 926 has a dredging depth of 6.75 meters, a maximum horizontal reach of 10 meters, and is equipped with a monobloc boom.

What power ratings are available for the Liebherr R 926?

According to the available data, no power rating information is provided for the Liebherr R 926.

What are the specifications of the primary work tool on the Liebherr R 926?

The primary work tool of the Liebherr R 926 has a bucket capacity of 0.95 cubic meters and a bucket width of 1.05 meters.

How much is a Liebherr R 926 Crawler excavator (2016u20132019) worth?

The residual value of the Liebherr R 926 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
