R 920 Compact Litronic Liebherr excavator specs & Dimensions (2019 - 2026)

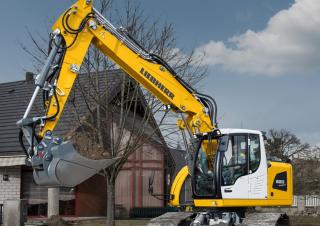

Liebherr R 920 Compact Litronic is a crawler excavator manufactured since 2019. It has a weight of 20.55 tons and a track width of…

Liebherr R 920 Compact Litronic is a crawler excavator manufactured since 2019. It has a weight of 20.55 tons and a track width of 500 mm. The transport dimensions are 8.3 meters in length, 2.49 meters in width, and 3.035 meters in height. The machine features a tear-out force of 98 kN, a dredging depth of 6.1 meters, and a maximum horizontal reach of 9.3 meters. The bucket capacity is 0.95 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

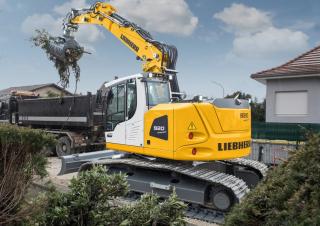

Crawler Excavators Liebherr R 920 Compact Litronic
Crawler Excavators Liebherr R 920 Compact Litronic
Crawler Excavators Liebherr R 920 Compact Litronic
Crawler Excavators Liebherr R 920 Compact Litronic

Visit Liebherr live at

Technical specs - R 920 Compact Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.55 t
Transport length
8.3 m
Transport width
2.49 m
Transport height
3.035 m
Bucket capacity
0.95 m³
Undercarriage
LC/NLC
Track width
500 mm
Boom
VA
Max. Reach horizontal
9.3 m
Dredging depth
6.1 m
Tear-out force
98 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D924 A7-04
Engine power
110 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 920 Compact Litronic FAQ

When was the Liebherr R 920 Compact Litronic manufactured?

The Liebherr R 920 Compact Litronic was first produced in 2019.

How much does the Liebherr R 920 Compact Litronic weigh?

The Liebherr R 920 Compact Litronic weighs 20.55 tons.

What are the transport dimensions of the Liebherr R 920 Compact Litronic?

The Liebherr R 920 Compact Litronic has a transport length of 8.3 meters, a transport width of 2.49 meters, and a transport height of 3.04 meters.

What are the undercarriage specifications of the Liebherr R 920 Compact Litronic?

The Liebherr R 920 Compact Litronic has a long, small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 920 Compact Litronic?

The Liebherr R 920 Compact Litronic has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.3 meters, and features an adjustable boom.

What power rating data is available for the Liebherr R 920 Compact Litronic?

No power rating data is available for the Liebherr R 920 Compact Litronic in the provided data.

What is the bucket capacity of the Liebherr R 920 Compact Litronic?

The bucket capacity of the Liebherr R 920 Compact Litronic is 0.95 cubic meters.

How much is a Liebherr R 920 Compact Litronic Crawler excavator (2019u20132025) worth?

The residual value of the Liebherr R 920 Compact Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
