R 920 Compact Liebherr excavator specs & Dimensions (2017 - 2019)

Liebherr R 920 Compact is a crawler excavator manufactured from 2017 to 2019. It has a weight of 19 tons and a track width of 600 …

Liebherr R 920 Compact is a crawler excavator manufactured from 2017 to 2019. It has a weight of 19 tons and a track width of 600 mm. The transport dimensions are 8.1 meters in length, 2 meters in width, and 3.035 meters in height. The machine features a tear-out force of 71.6 kN, a dredging depth of 5.8 meters, and a maximum horizontal reach of 8.95 meters. The bucket width is 1.05 meters with a capacity of 0.8 cubic meters.

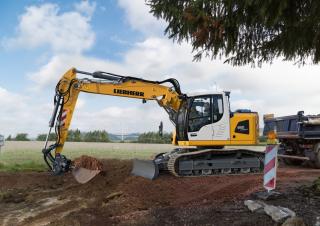

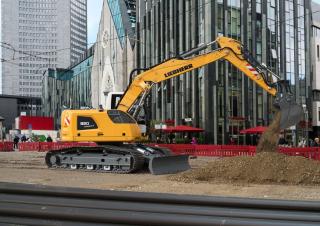

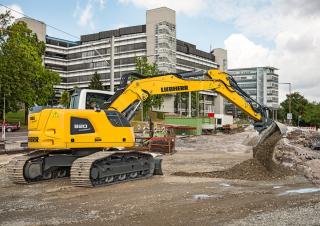

Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact
Crawler Excavators Liebherr R 920 Compact

Visit Liebherr live at

Technical specs - R 920 Compact Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Transport length
8.1 m
Transport width
2 m
Transport height
3.035 m
Bucket capacity
0.8 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.95 m
Dredging depth
5.8 m
Tear-out force
71.6 kN
Bucket width
1.05 m
Model series
R
Engine manuf.
Liebherr
Engine type
D924 A7
Engine power
100 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 920 Compact FAQ

When was the Liebherr R 920 Compact manufactured?

The Liebherr R 920 Compact was manufactured from 2017 to 2019.

How much does the Liebherr R 920 Compact weigh?

The Liebherr R 920 Compact weighs 19 tons.

What are the transport dimensions of the Liebherr R 920 Compact crawler excavator?

The Liebherr R 920 Compact has a transport length of 8.1 meters, a transport width of 2 meters, and a transport height of 3.04 meters.

What is the fuel consumption range of the Liebherr R 920 Compact?

The Liebherr R 920 Compact has a fuel consumption range of 6 to 12 liters per hour.

What are the undercarriage specifications of the Liebherr R 920 Compact?

The Liebherr R 920 Compact has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 920 Compact?

The Liebherr R 920 Compact has a dredging depth of 5.8 meters, a maximum horizontal reach of 8.95 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 920 Compact?

The Liebherr R 920 Compact has a tear-out force of 71.6 kN.

What are the specifications of the primary work tool bucket on the Liebherr R 920 Compact?

The primary work tool bucket of the Liebherr R 920 Compact has a capacity of 0.8 cubic meters and a width of 1.05 meters.

How much is a Liebherr R 920 Compact Crawler excavator (2017u20132019) worth?

The residual value of the Liebherr R 920 Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
