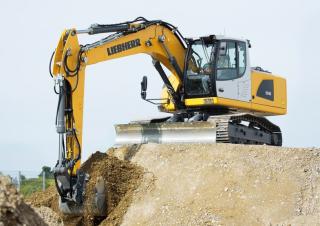

R 918 Litronic Liebherr excavator specs & Dimensions (2021 - 2026)

Liebherr R 918 Litronic is a Crawler Excavator manufactured since 2021. It has a weight of 19.55 tons and a track width of 500 mm.…

Liebherr R 918 Litronic is a Crawler Excavator manufactured since 2021. It has a weight of 19.55 tons and a track width of 500 mm. The transport dimensions are 8.9 meters in length, 2.75 meters in width, and 3.03 meters in height. The dredging depth is 5.71 meters, with a maximum horizontal reach of 8.91 meters. The bucket width is 1.4 meters, with a capacity ranging from 0.55 m³ to 1.15 m³. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic

Visit Liebherr live at

Technical specs - R 918 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.55 t
Transport length
8.9 m
Transport width
2.75 m
Transport height
3.03 m
Bucket capacity
1.15 m³
Bucket capacity min.
0.55 m³
Bucket capacity max.
1.15 m³
Track width
500 mm
Max. Reach horizontal
8.91 m
Dredging depth
5.71 m
Bucket width
1.4 m
Model series
R
Engine manuf.
Liebherr
Engine type
D924 A7-05
Engine power
120 kW
Displacement
4.5 l
Revolutions at max torque
1400 rpm
Max. torque
682 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 918 Litronic FAQ

When was the Liebherr R 918 Litronic manufactured?

The Liebherr R 918 Litronic was first produced in 2021.

How much does the Liebherr R 918 Litronic weigh?

The Liebherr R 918 Litronic weighs 19.55 tons.

What are the transport dimensions of the Liebherr R 918 Litronic?

The Liebherr R 918 Litronic has a transport length of 8.9 meters, a transport width of 2.75 meters, and a transport height of 3.03 meters.

What is the track width of the Liebherr R 918 Litronic's undercarriage?

The Liebherr R 918 Litronic has a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 918 Litronic?

The Liebherr R 918 Litronic has a dredging depth of 5.71 meters and a maximum horizontal reach of 8.91 meters.

What are the bucket specifications of the Liebherr R 918 Litronic excavator?

The Liebherr R 918 Litronic excavator has a bucket capacity ranging from 0.55 to 1.15 cubic meters and a bucket width of 1.4 meters.

How much is a Liebherr R 918 Litronic Crawler excavator (2021u20132025) worth?

The residual value of the Liebherr R 918 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
