R 918 Litronic Liebherr excavator specs & Dimensions (2019 - 2021)

Liebherr R 918 Litronic is a Crawler Excavator manufactured from 2019 to 2021. It has a weight of 21.9 tons and a track width of 5…

Liebherr R 918 Litronic is a Crawler Excavator manufactured from 2019 to 2021. It has a weight of 21.9 tons and a track width of 500 mm. The transport dimensions are 9.2 meters in length, 2.49 meters in width, and 3.03 meters in height. The machine features a tear-out force of 135 kN, a dredging depth of 6.75 meters, and a maximum horizontal reach of 9.95 meters. The bucket capacity is 1.15 cubic meters. Special equipment includes air conditioning, a blade, material handling capabilities, and an overload alert system.

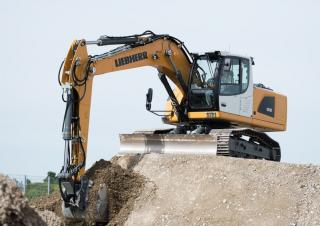

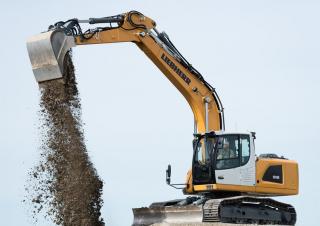

Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic
Crawler Excavators Liebherr R 918 Litronic

Visit Liebherr live at

Technical specs - R 918 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.9 t
Transport length
9.2 m
Transport width
2.49 m
Transport height
3.03 m
Bucket capacity
1.15 m³
Undercarriage
LC/NLC
Track width
500 mm
Boom
UA
Max. Reach horizontal
9.95 m
Dredging depth
6.75 m
Tear-out force
135 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D924 A7-04
Engine power
120 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 918 Litronic FAQ

When was the Liebherr R 918 Litronic manufactured?

The Liebherr R 918 Litronic was manufactured from 2019 to 2021.

How much does the Liebherr R 918 Litronic weigh?

The Liebherr R 918 Litronic weighs 21.9 tons.

What are the transport dimensions of the Liebherr R 918 Litronic?

The Liebherr R 918 Litronic has a transport length of 9.2 meters, a transport width of 2.49 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the Liebherr R 918 Litronic?

The Liebherr R 918 Litronic has a long, small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 918 Litronic?

The Liebherr R 918 Litronic has a dredging depth of 6.75 meters, a maximum horizontal reach of 9.95 meters, and is equipped with a material handling boom.

What are the power ratings of the Liebherr R 918 Litronic?

The source data does not provide any power ratings for the Liebherr R 918 Litronic.

What is the bucket capacity of the Liebherr R 918 Litronic?

The bucket capacity of the Liebherr R 918 Litronic is 1.15 cubic meters.

How much is a Liebherr R 918 Litronic Crawler excavator (2019u20132021) worth?

The residual value of the Liebherr R 918 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
