R 9150 B Liebherr excavator specs & Dimensions (2019 - 2022)

Liebherr R 9150 B is a crawler excavator manufactured since 2019, with a weight of 133.1 tons. It features a track width of 750 mm…

Liebherr R 9150 B is a crawler excavator manufactured since 2019, with a weight of 133.1 tons. It features a track width of 750 mm, a transport length of 16.5 meters, a transport width of 6.105 meters, and a transport height of 6.145 meters. The machine has a tear-out force of 530 kN, a dredging depth of 8.1 meters, and a maximum horizontal reach of 13.65 meters. It is equipped with a bucket capacity of 10.6 cubic meters and includes air conditioning as special equipment.

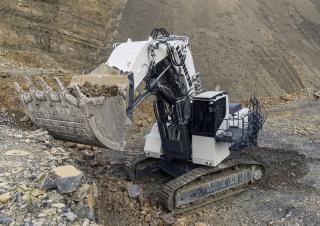

Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B
Crawler Excavators Liebherr R 9150 B

Visit Liebherr live at

Technical specs - R 9150 B Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
133.1 t
Transport length
16.5 m
Transport width
6.105 m
Transport height
6.145 m
Bucket capacity
10.6 m³
Undercarriage
HD
Track width
750 mm
Boom
MB
Max. Reach horizontal
13.65 m
Dredging depth
8.1 m
Tear-out force
530 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D9512
Engine power
565 kW
Displacement
24.24 l
Revolutions at max torque
1800 rpm
Cylinder bore x stroke
128x157 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9150 B FAQ

When was the Liebherr R 9150 B manufactured?

The Liebherr R 9150 B was first produced in 2019.

How much does the Liebherr R 9150 B weigh?

The Liebherr R 9150 B weighs 133.1 tons.

What are the transport dimensions of the Liebherr R 9150 B?

The Liebherr R 9150 B has a transport length of 16.5 meters, a transport width of 6.11 meters, and a transport height of 6.15 meters.

What are the undercarriage specifications of the Liebherr R 9150 B?

The Liebherr R 9150 B has a heavy duty undercarriage with a track width of 750 mm.

What are the excavation performance specifications of the Liebherr R 9150 B?

The Liebherr R 9150 B has a dredging depth of 8.1 meters, a maximum horizontal reach of 13.65 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 9150 B?

The Liebherr R 9150 B has a tear-out force of 530 kN. No power rating data is available for this model in the provided source.

What is the bucket capacity of the Liebherr R 9150 B crawler excavator?

The bucket capacity of the Liebherr R 9150 B is 10.6 cubic meters.

How much is a Liebherr R 9150 B Crawler excavator (2019u20132025) worth?

The residual value of the Liebherr R 9150 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
