R 9100 G6 Liebherr excavator specs & Dimensions (2023 - 2026)

Weight: 116t – Transport length: 16.08m – Transport width: 5.856m – Transport height: 7.55m – Bucket capacity: 7.3m³ – Bucket capa…

Weight: 116t – Transport length: 16.08m – Transport width: 5.856m – Transport height: 7.55m – Bucket capacity: 7.3m³ – Bucket capacity min.: 7m³

Check out detailed specifications, information and technical data for Liebherr R 9100 G6 excavator manufactured between 2023 - 2026. Get more in-depth insight with Liebherr R 9100 G6 digger specifications. See information, like: Weight: 116t – Transport length: 16.08m – Transport width: 5.856m – Transport height: 7.55m – Bucket capacity: 7.3m³ – Bucket capacity min.: 7m³ and more.

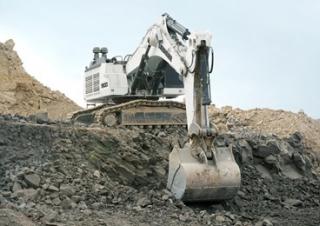

Crawler Excavators Liebherr R 9100 G6

Visit Liebherr live at

Technical specs - R 9100 G6 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
116 t
Transport length
16.08 m
Transport width
5.856 m
Transport height
7.55 m
Bucket capacity
7.3 m³
Bucket capacity min.
7 m³
Bucket capacity max.
7.5 m³
Track width
750 mm
Max. Reach horizontal
13.5 m
Dredging depth
7.2 m
Tear-out force
704 kN
Bucket width
2 m
Model series
R
Engine manuf.
Liebherr
Engine type
D9512
Engine power
565 kW
Displacement
24.2 l
Revolutions at max torque
1800 rpm
No. of cylinders
12
Cylinder bore x stroke
128x157 mm
Emission level
V

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9100 G6 FAQ

When was the Liebherr R 9100 G6 manufactured?

The Liebherr R 9100 G6 was first produced in 2023.

How much does the Liebherr R 9100 G6 weigh?

The Liebherr R 9100 G6 weighs 116 tons.

What are the transport dimensions of the Liebherr R 9100 G6?

The Liebherr R 9100 G6 has a transport length of 16.08 meters, a transport width of 5.86 meters, and a transport height of 7.55 meters.

What is the track width of the Liebherr R 9100 G6's undercarriage?

The Liebherr R 9100 G6 has a track width of 750 mm.

What are the excavation performance specifications of the Liebherr R 9100 G6?

The Liebherr R 9100 G6 has a dredging depth of 7.2 meters and a maximum horizontal reach of 13.5 meters.

What is the tear-out force of the Liebherr R 9100 G6, given that no power rating data is available?

The Liebherr R 9100 G6 has a tear-out force of 704 kN.

What are the specifications of the bucket on the Liebherr R 9100 G6 crawler excavator?

The bucket of the Liebherr R 9100 G6 has a capacity of 7.3 cubic meters, with a maximum capacity of 7.5 cubic meters and a minimum capacity of 7 cubic meters, and a width of 2 meters.

How much is a Liebherr R 9100 G6 Crawler excavator (2023u20132025) worth?

The residual value of the Liebherr R 9100 G6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
