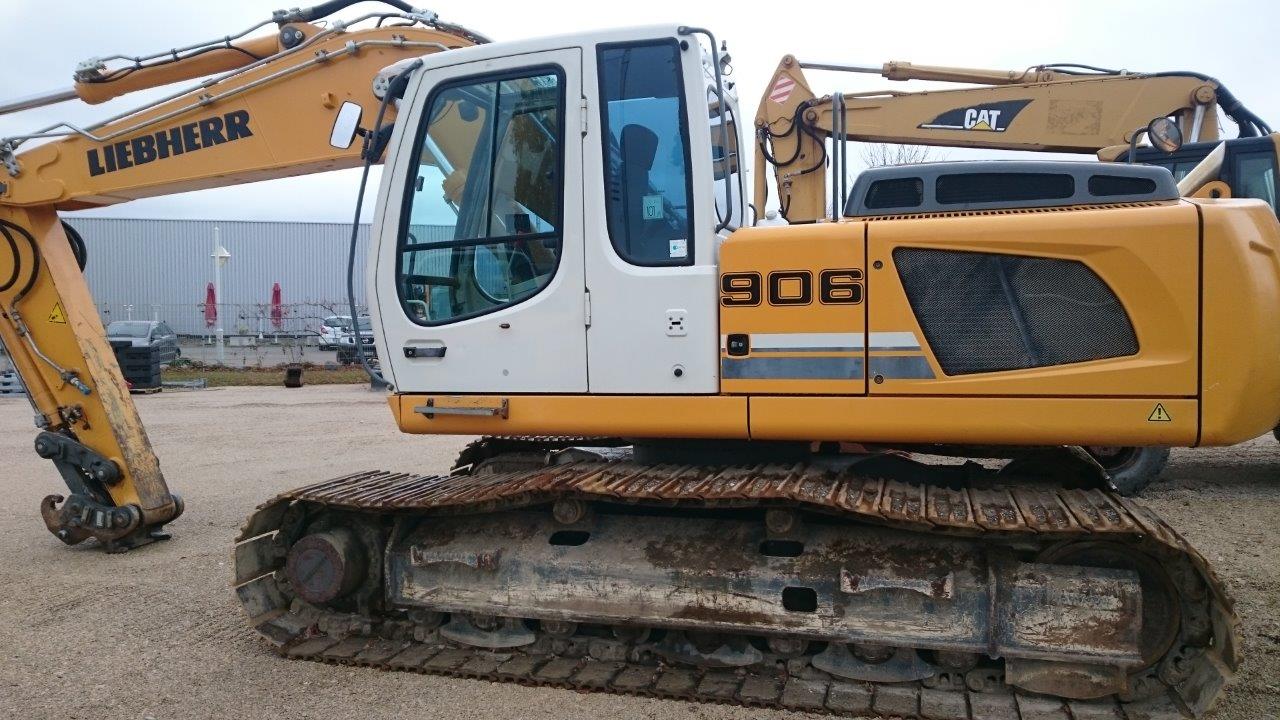

R 906 Advanced Liebherr excavator specs & Dimensions (2009 - 2013)

Liebherr R 906 Advanced is a crawler excavator manufactured from 2009 to 2013. It has a weight of 22.8 tons, a track width of 600 …

Liebherr R 906 Advanced is a crawler excavator manufactured from 2009 to 2013. It has a weight of 22.8 tons, a track width of 600 mm, a transport length of 9.2 meters, a transport width of 2.85 meters, and a transport height of 3.047 meters. The machine features a tear-out force of 117 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Liebherr R 906 Advanced

Visit Liebherr live at

Technical specs - R 906 Advanced Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.8 t
Transport length
9.2 m
Transport width
2.85 m
Transport height
3.047 m
Bucket capacity
0.8 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.3 m
Dredging depth
6.3 m
Tear-out force
117 kN
Bucket width
1.05 m
Model series
R
Engine manuf.
Liebherr
Engine type
D934 S
Engine power
105 kW
Displacement
6.36 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 906 Advanced FAQ

When was the Liebherr R 906 Advanced manufactured?

The Liebherr R 906 Advanced was manufactured from 2009 to 2013.

How much does the Liebherr R 906 Advanced weigh?

The Liebherr R 906 Advanced weighs 22.8 tons.

What are the transport dimensions of the Liebherr R 906 Advanced crawler excavator?

The Liebherr R 906 Advanced has a transport length of 9.2 meters, a transport width of 2.85 meters, and a transport height of 3.05 meters.

What are the undercarriage specifications of the Liebherr R 906 Advanced?

The Liebherr R 906 Advanced has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 906 Advanced?

The Liebherr R 906 Advanced has a dredging depth of 6.3 meters, a maximum horizontal reach of 9.3 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 906 Advanced?

The tear-out force of the Liebherr R 906 Advanced is 117 kN.

What are the specifications of the bucket on the Liebherr R 906 Advanced?

The bucket of the Liebherr R 906 Advanced has a capacity of 0.8 cubic meters and a width of 1.05 meters.

How much is a Liebherr R 906 Advanced Crawler excavator (2009u20132013) worth?

The residual value of the Liebherr R 906 Advanced depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
